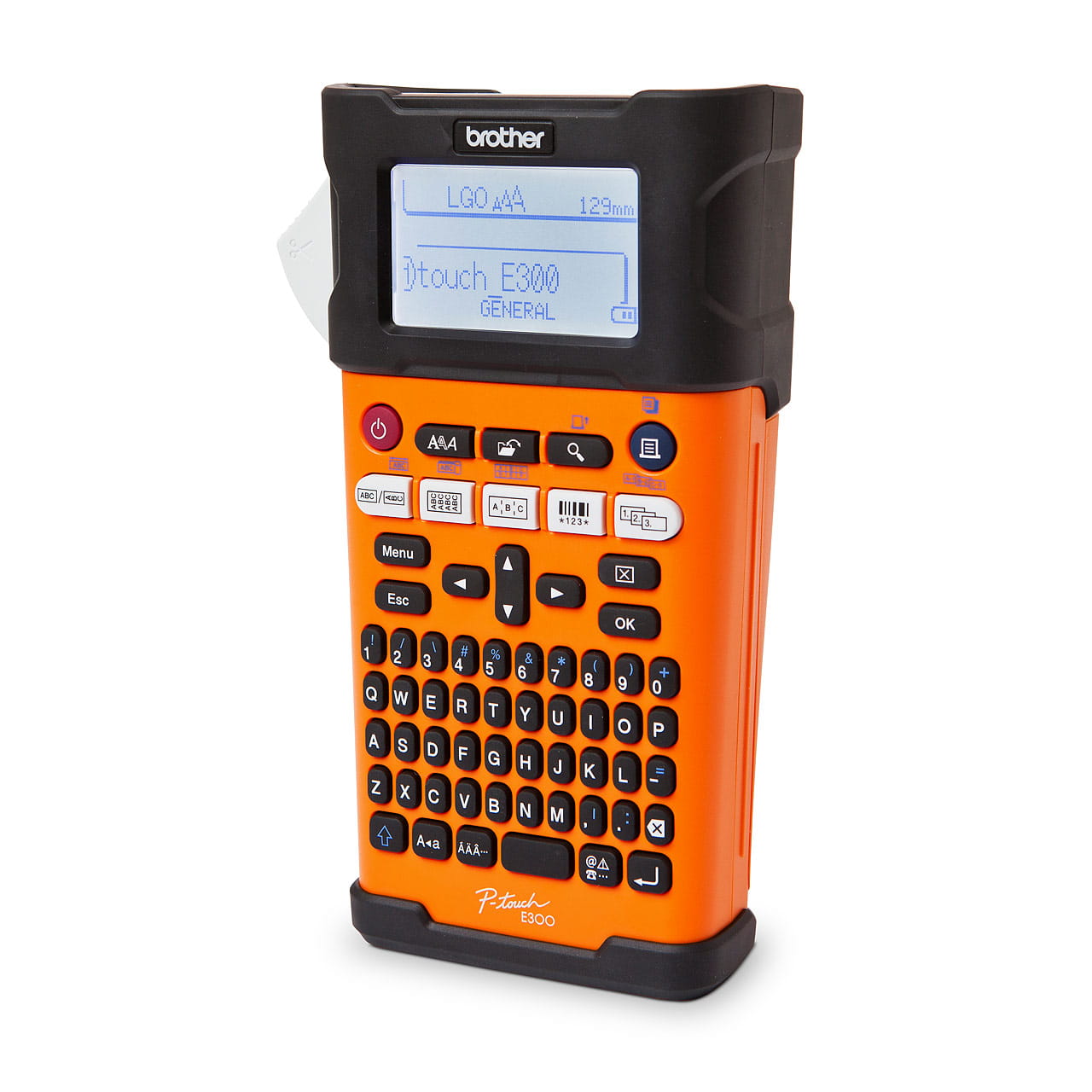

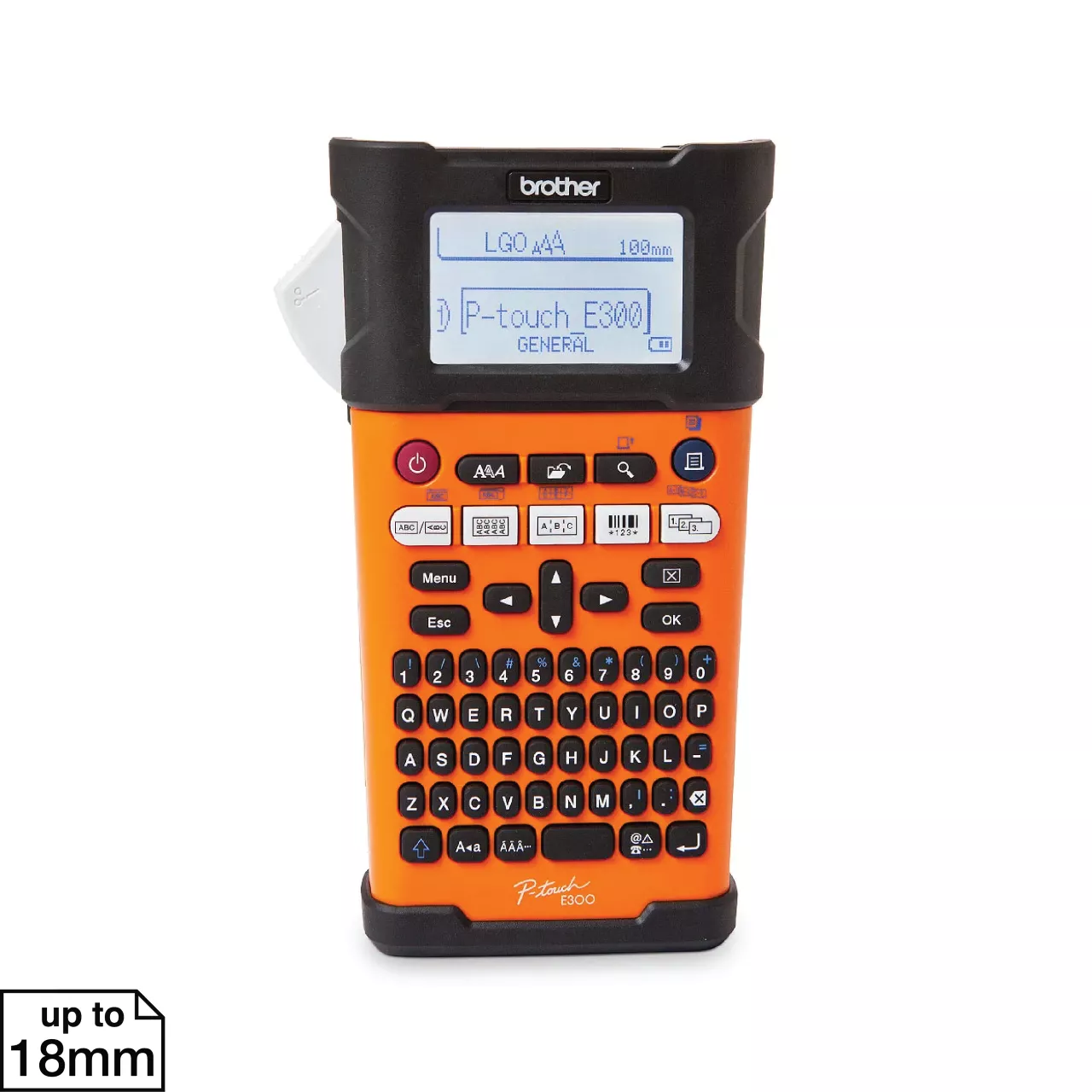

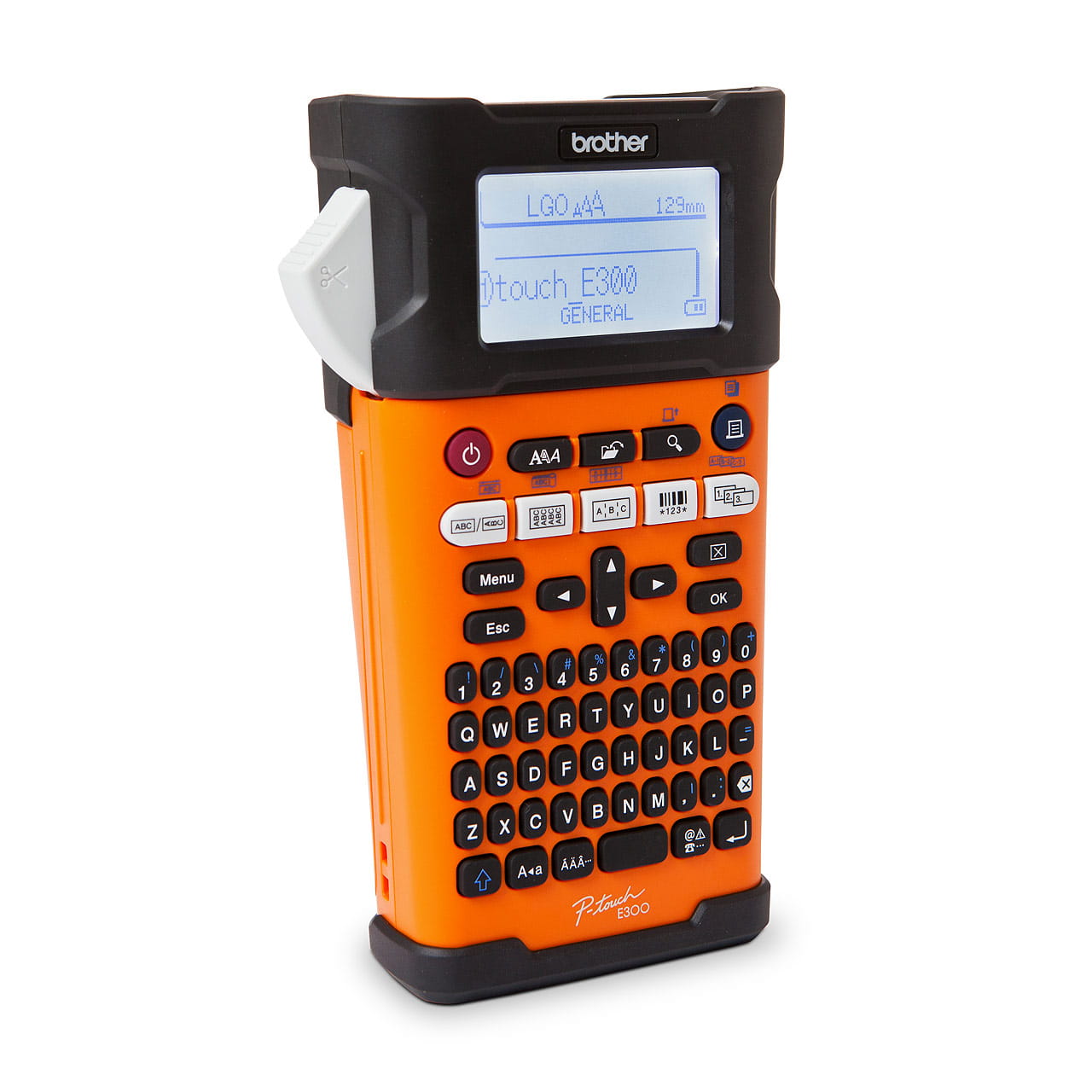

Electrician label maker designed for on-site use
Normal Price 8,990.-
5,990 THB
- Print up to 18mm TZe laminated tapes width
- QWERTY keyboard
- Manual cut function
- Dedicated function keys for electrical and datacom
- Comes with hard carrying case
- Rechargeable Li-ion battery included
Information
Overview
In electrical and datacom installations, clear, robust labelling is crucial – and the PT-E300VP with carry case has been designed to make the process easier than ever before.
It’s a durably engineered machine with a rechargeable battery and AC adapter that makes printing labels from 3.5 to 18mm wide simple. And it’s also compatible with high-grade and self-laminating tapes, as well as heat-shrink tubes.
The PT-E300VP come pre-loaded with 384 commonly used symbols, along with 9 barcode protocols, all easily accessed via a PC-style keyboard and large backlit LCD screen.
And as the label material is laminated and rigorously tested against all crucial degrading effects, you can be sure your vital information will remain clear and professional-looking for years to come.
Specifications
Basic Specs
Keyboard
QWERTY
Display Type
16 characters x 2 guidance and 2 lines text
(128 dots x 56 dots)
Media Type
TZe tape, HSe tape
Available Tape Widths
3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm
Product Dimensions (Width X Depth X Height)
134 mm × 69 mm × 221 mm
Weight
0.75 kg
Print Speed
20 mm/sec
Warranty
1 year
Resolution
180 dpi
No. Of Printable Lines
18 mm tape: 1 - 5 lines;
12 mm tape: 1 - 3 lines;
9 mm tape: 1 - 2 lines;
6 mm tape: 1 - 2 lines;
3.5 mm tape: 1 line
Number of Characters
591
Number of Symbols
384
Barcode
1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
Numbering
Yes
Media
Maximum Tape Width
Up to 18 mm
Functions
Cutter
Manual
Multi Block Printing
Yes
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
Maximum 50 files
Memory Buffer Size
Maximum 2,400 characters
Power
Power Source
6 AA alkaline batteries (LR6), 6 AA Ni-MH rechargeable batteries (HR6), Li-ion Battery (BA-E001), or AC adapter(AD-E001)
Auto Power-Off
Battery: 5 min
AC adapter: 5 min
