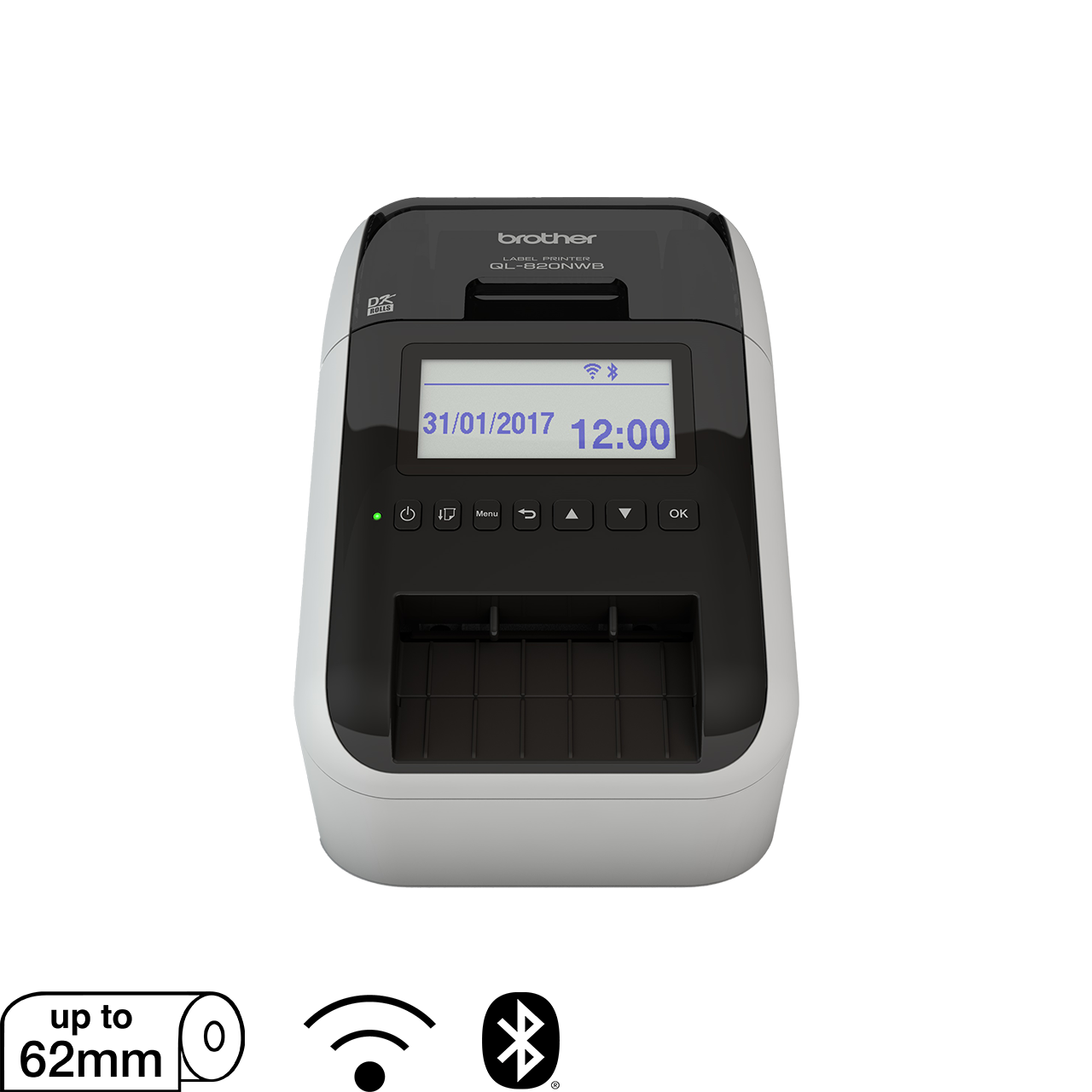

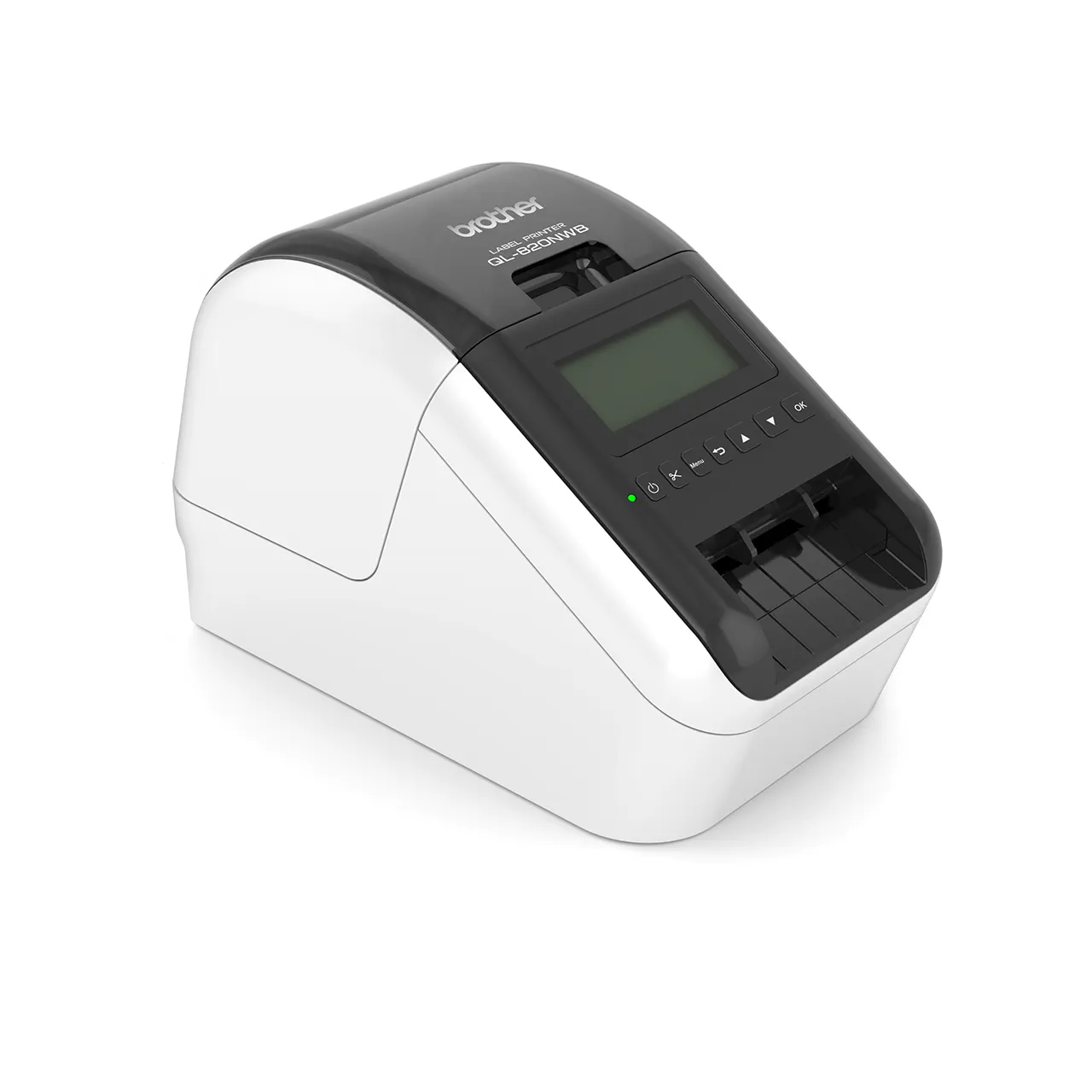

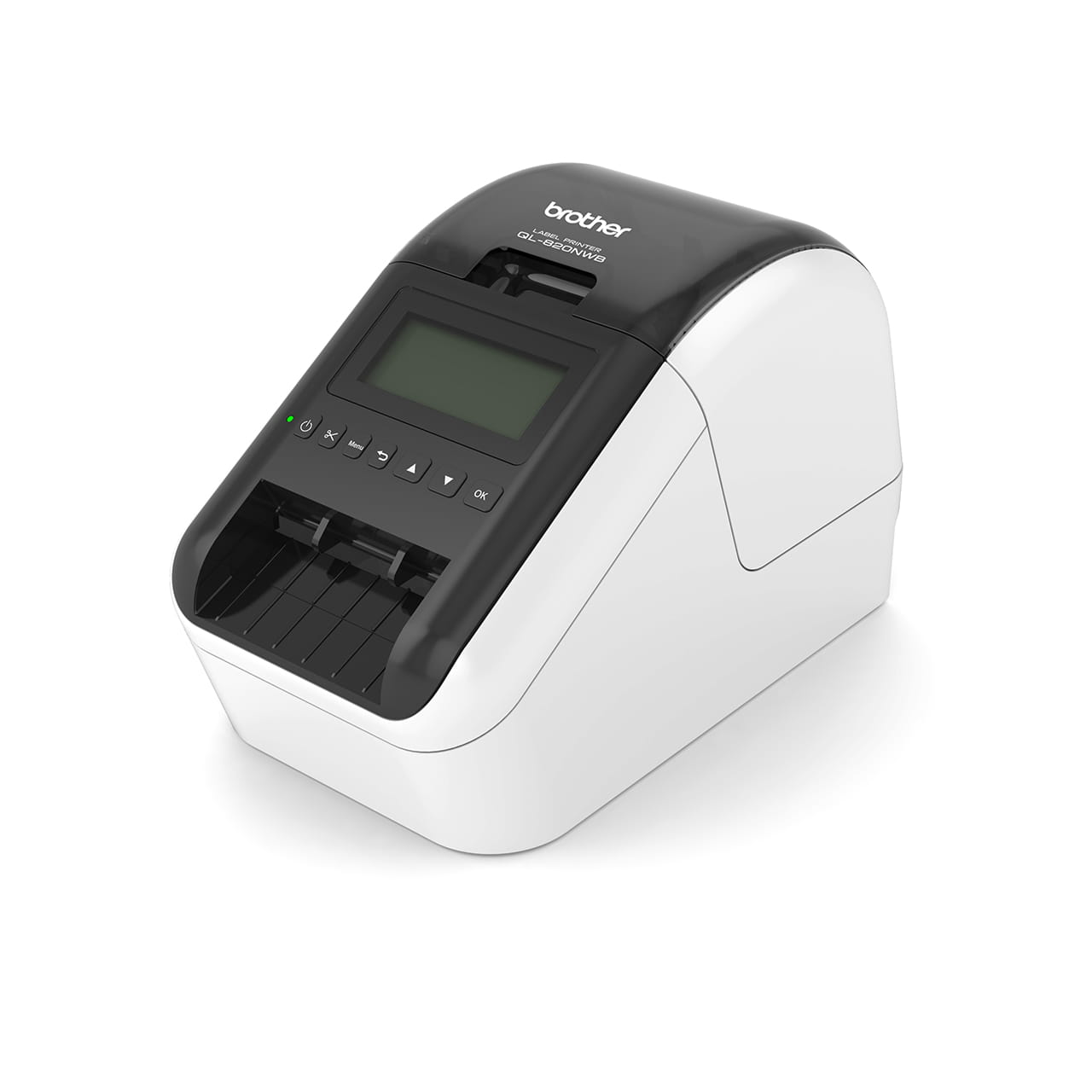

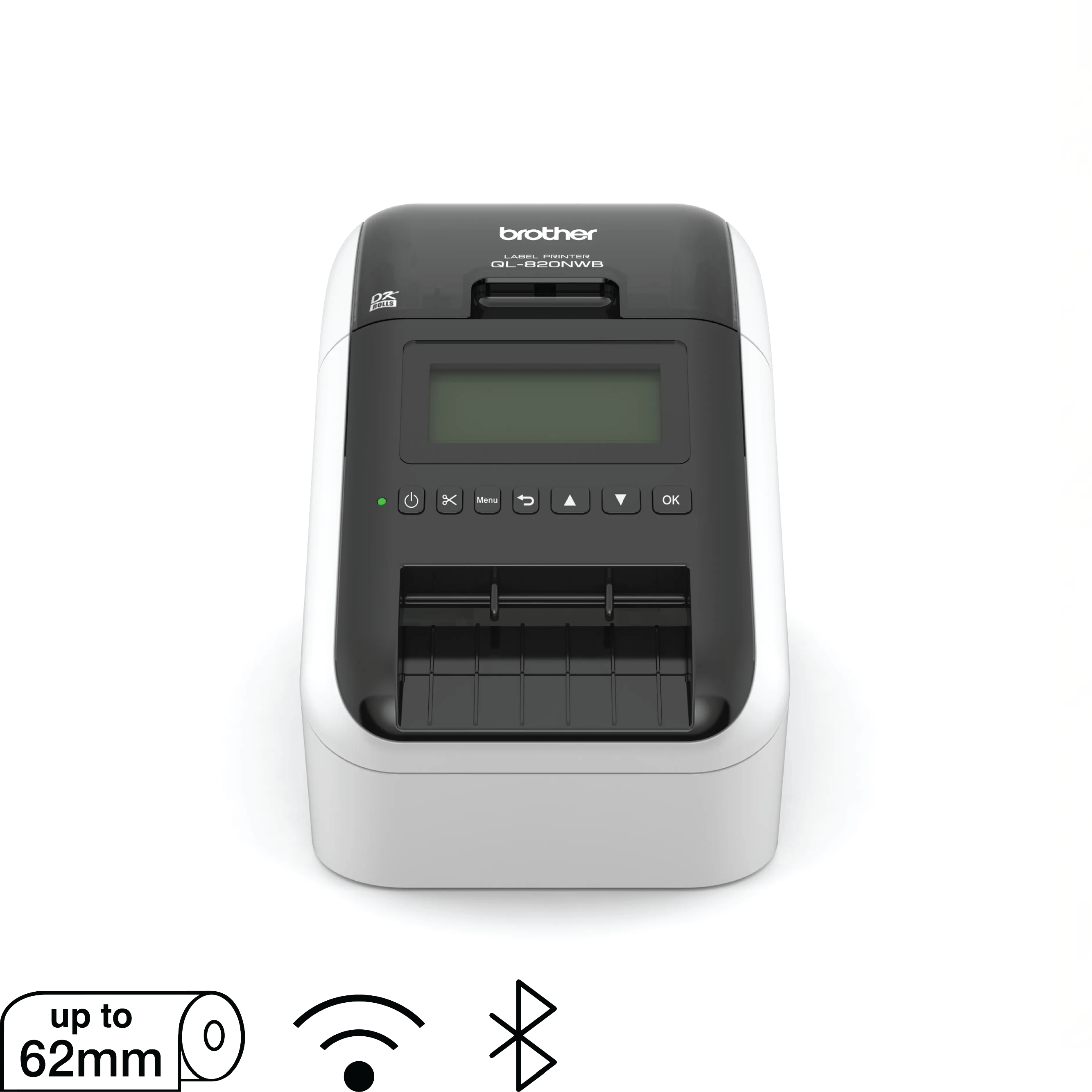

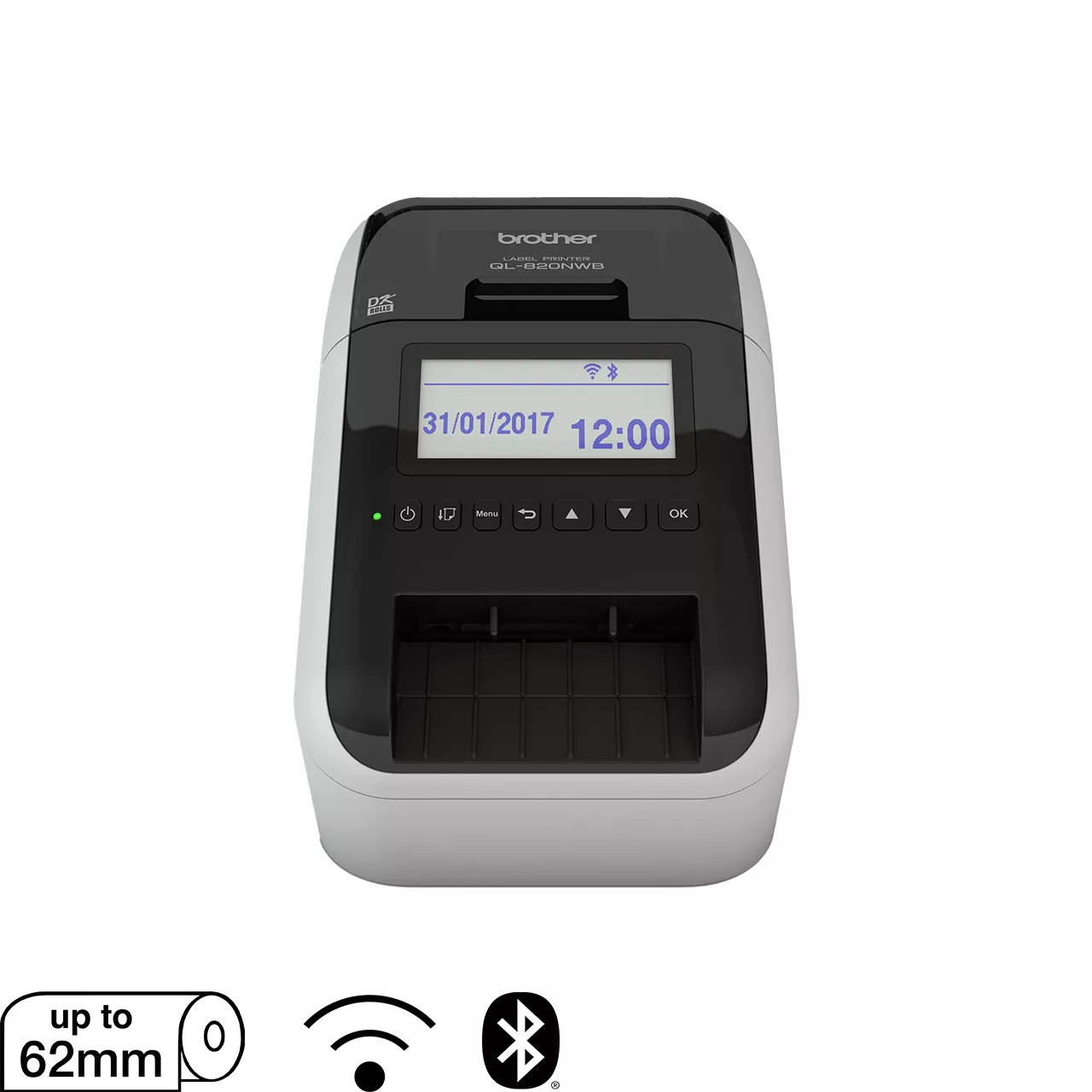

High Speed Professional Wireless Label Printer
9,990 THB
- High-resolution printing (up to 300 x 600 dpi)
- Convenient, drop-in rolls. No ink or toner needed
- USB, Network, Wireless, Bluetooth Connection

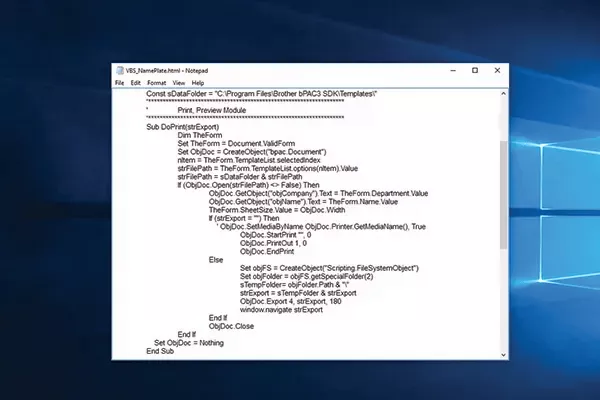

- Software Development Kits available
- USB, Wi-Fi with AirPrint, Wired Ethernet and Bluetooth connectivity for easy connection to mobile devices
Information
Overview
Specifications
Basic Specs
Display Type
320x120 dot graphic LCD with backlight
Media Type
DK roll
Available Tape Widths
up to 62mm
Product Dimensions (Width X Depth X Height)
125.3 mm × 234 mm × 145 mm
Weight
1.16 kg
Print Speed
Max 176mm/sec
Resolution
Standard: 300 dpi × 300 dpi
High resolution mode: 300 dpi × 600 dpi
Barcode

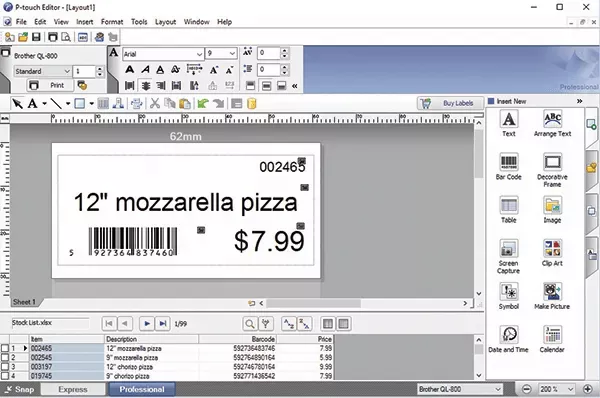

21 barcode protocols on P-touch Editor
Numbering
Yes
Connectivity
Connectivity

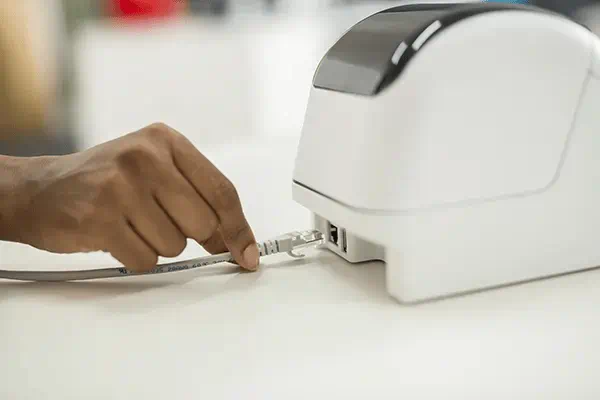

USB & Wired Ethernet, Wireless LAN, Bluetooth
Media
Maximum Roll Width
up to 62mm
Printing Width
Up to 58 mm
Functions
Cutter
Yes (full auto cut / guillotine type)
Multi Block Printing
PC
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
6MB, 255 templates
Power
Power Source
240V AC external adapter
Auto Power-Off
Yes
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, (ZPL/ZPLⅡ(upon request))
