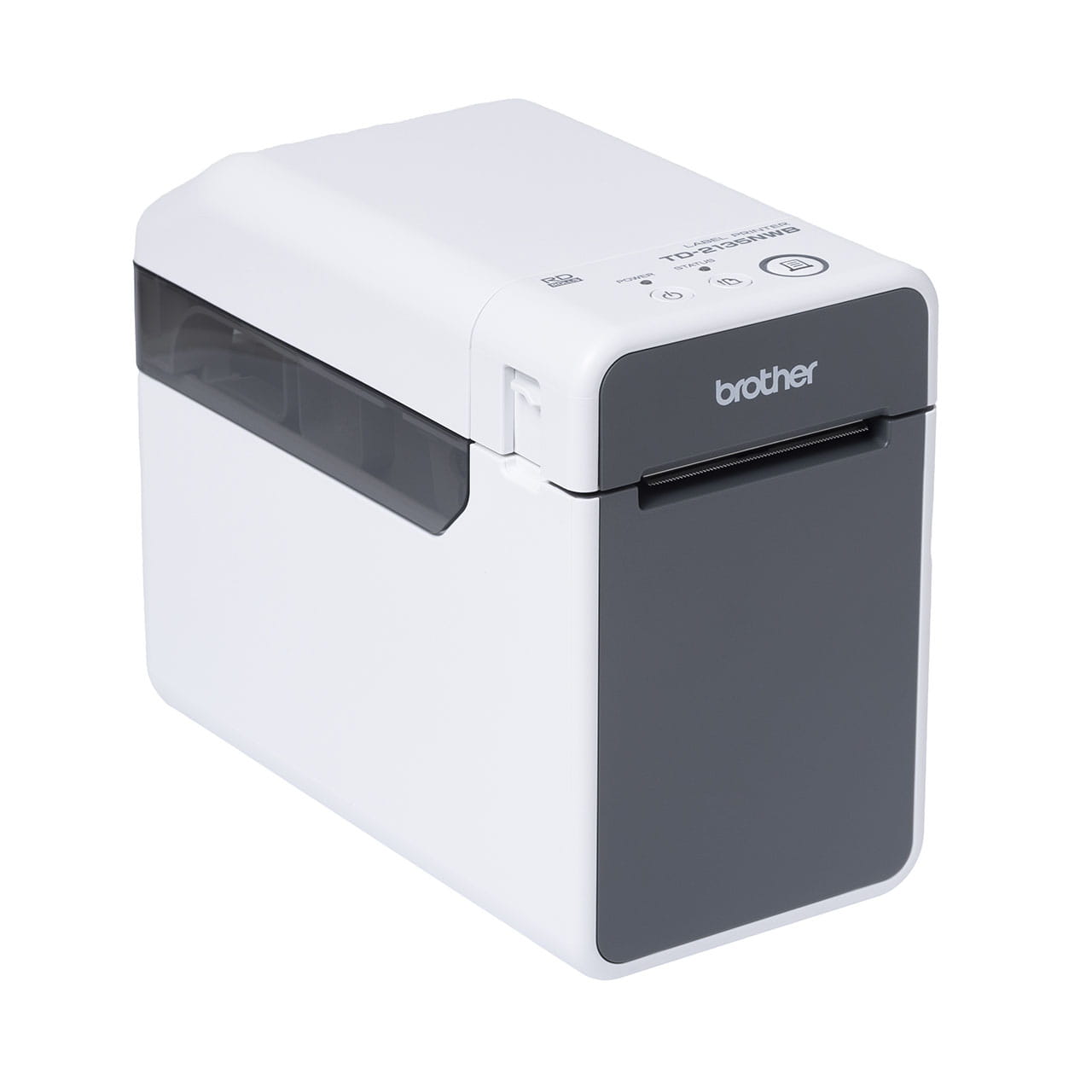

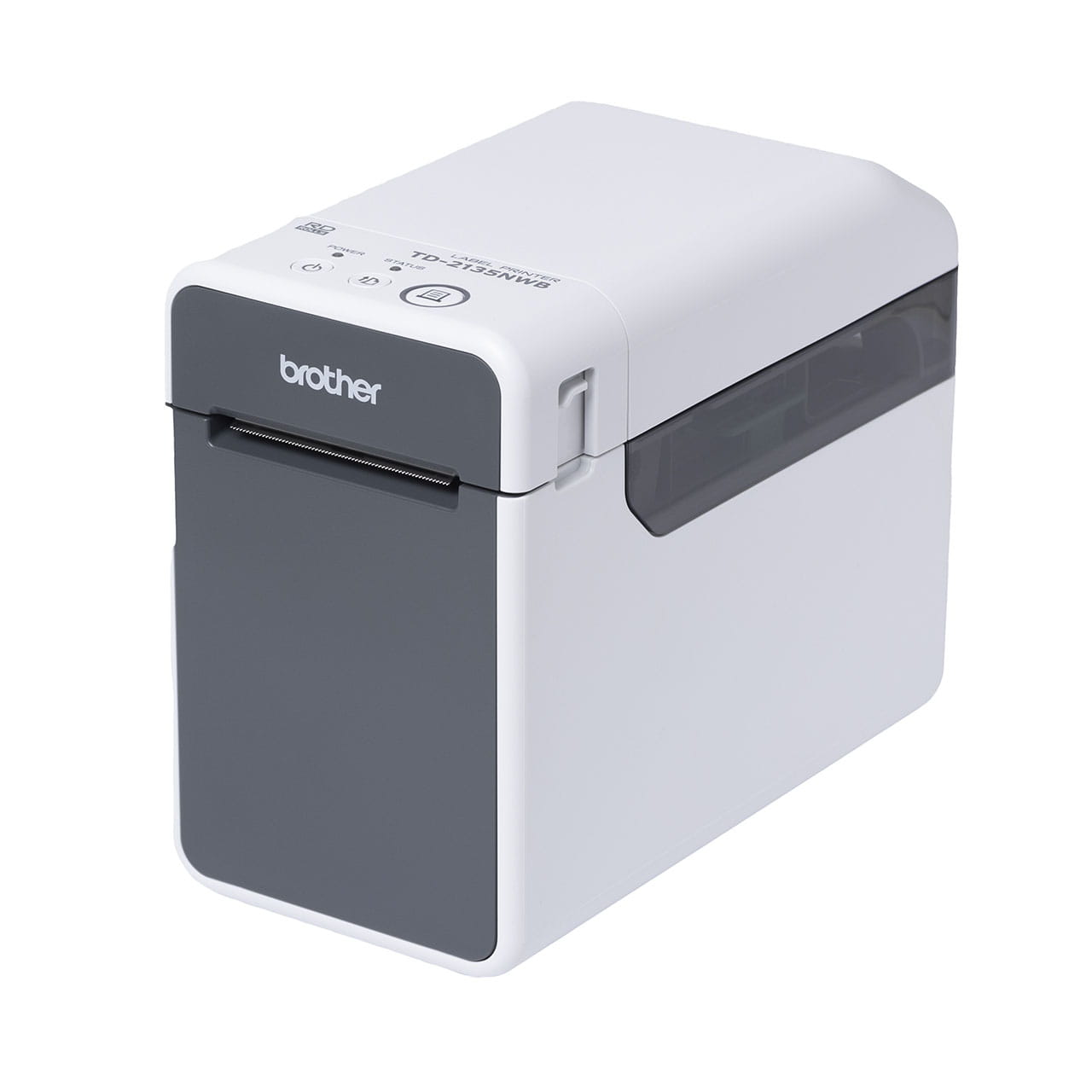

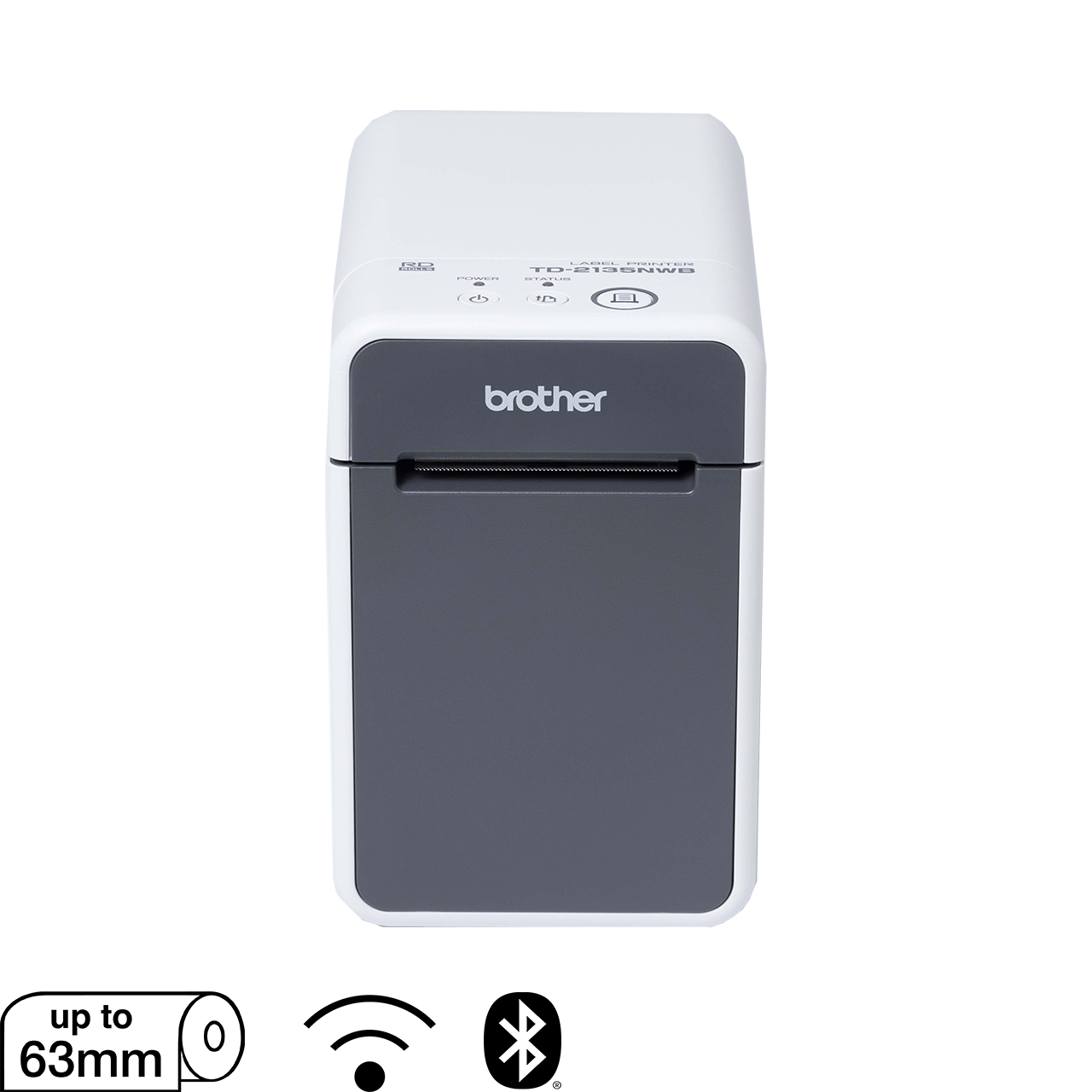

Professional Label Printer for Healthcare, Food and Retail industry
19,900 THB
- Print up to 63mm RD rolls width
- USB, USB host, Bluetooth, Serial, Wired LAN and WiFi connection
- Tear Bar
- Print Labels, Receipts, Tags and Wristbands
- Compatible with customised media
- Optional accessories available
Information
Overview
Specifications
Basic Specs
Keyboard
No Keyboard
Display Type
No
Media Type
Continuous Receipt roll - (Non-coated or Coated), Continuous or Die-cut Labels, Wristband, Tag
Available Tape Widths
Up to 63mm
Product Dimensions (Width X Depth X Height)
110 mm × 215 mm × 172 mm
Weight
1.34 kg
Print Speed
152.4 mm/sec (6ips)
Resolution
300 dpi
No. Of Printable Lines
Adjustable within 63mm width
Number of Characters
No
Number of Symbols
No
Barcode
1. CODE 39
2. CODE 128
3. CODE 93
4. CODABAR (NW-7)
5. ITF (I-2/5)
6. UPC-A
7. UPC-E
8. UPC and EAN 2 or 5-digit extensions
9. EAN-8 (JAN-8)
10. EAN-13 (JAN-13)
11. GS1-128 (UCC/EAN-128)
12. GS1 DataBar（RSS14、RSS14 Stacked、RSS14 Truncation、RSS14 Stacked Omnidirection）,（RSS Limited）, （RSS Expanded, RSS Expanded Stacked）
13. MSI
14. POSTNET
15. PDF417 (Standard, Truncate, MicroPDF417)
16. Data Matrix (ECC200 Square, ECC200 Rectangular)
17. Maxicode
18. QR Code (model 1, model 2, Micro QR),
19. Aztec
Numbering
Print via P-touch Editor
Connectivity
Connectivity
USB version 2.0 (Full Speed) (mini-B), Wireless LAN IEEE 802.11b/g/n (Infrastructure Mode/2.4GHz), IEEE 802.11a/n (Ad-hoc Mode/5.0GHz), IEEE802.11g/n (Wireless Direct)
Media
Maximum Roll Width
Up to 63 mm
Printing Width
Up to 56 mm
Functions
Cutter
No cutter, Tear off
Multi Block Printing
Print via P-touch Editor
Copy Printing
Print via P-touch Editor
Mirror Printing
Print via P-touch Editor
Preview
via P-touch Editor
Memory
File Storage
6 MB or Maximum 99 templates
Memory Buffer Size
20MB
Power
Power Source
100 - 240 V 50/60 Hz
Auto Power-Off
Yes
Supported Operating Systems
Supported OS
Windows 8.1, 10, 11, Server 2012/ 2012 R2/ 2016/ 2019/ 2022
Supported Commands
Supported Commands
P-touch Template2.0 , ZPLII compatible, Raster, ESC/P, CPCL compatible
