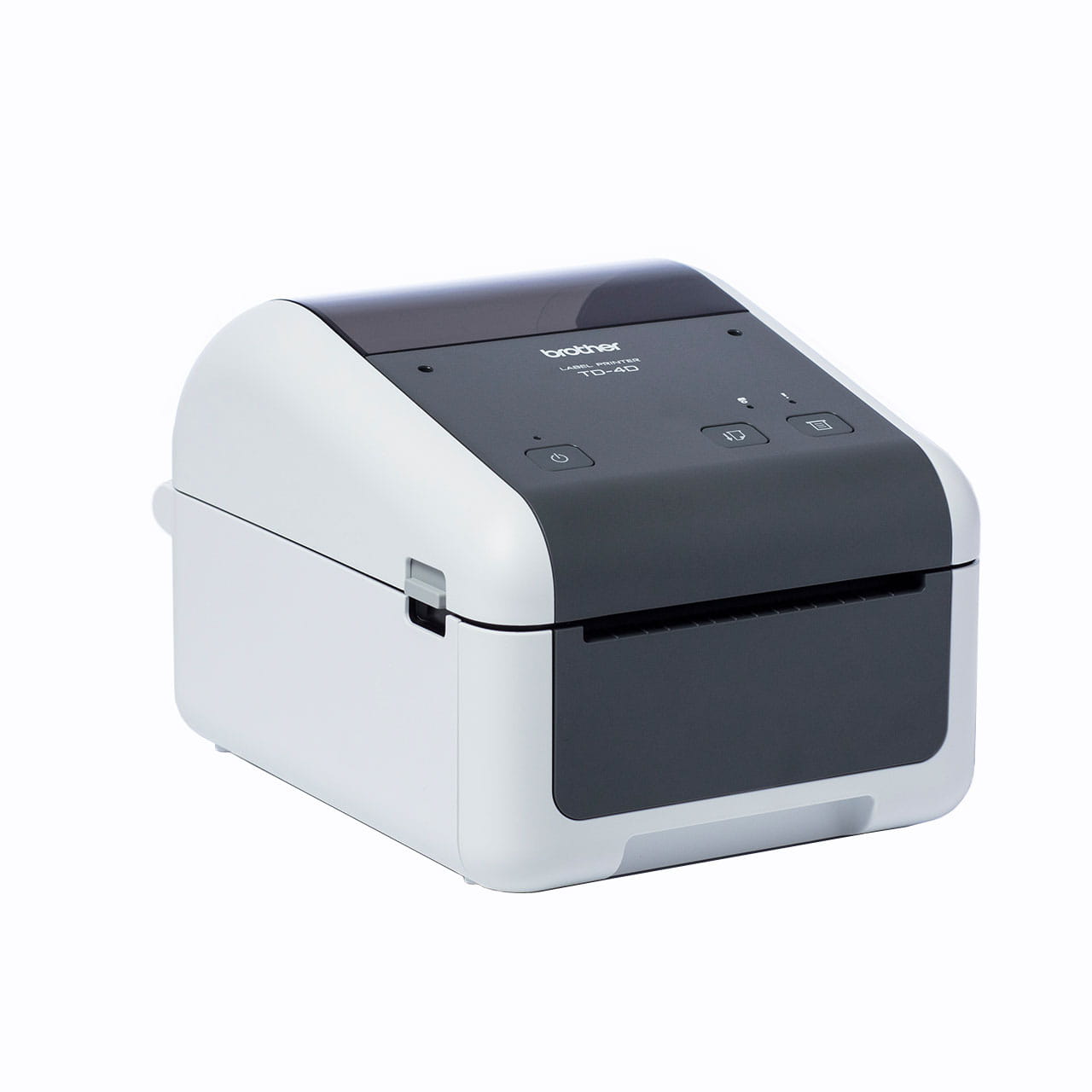

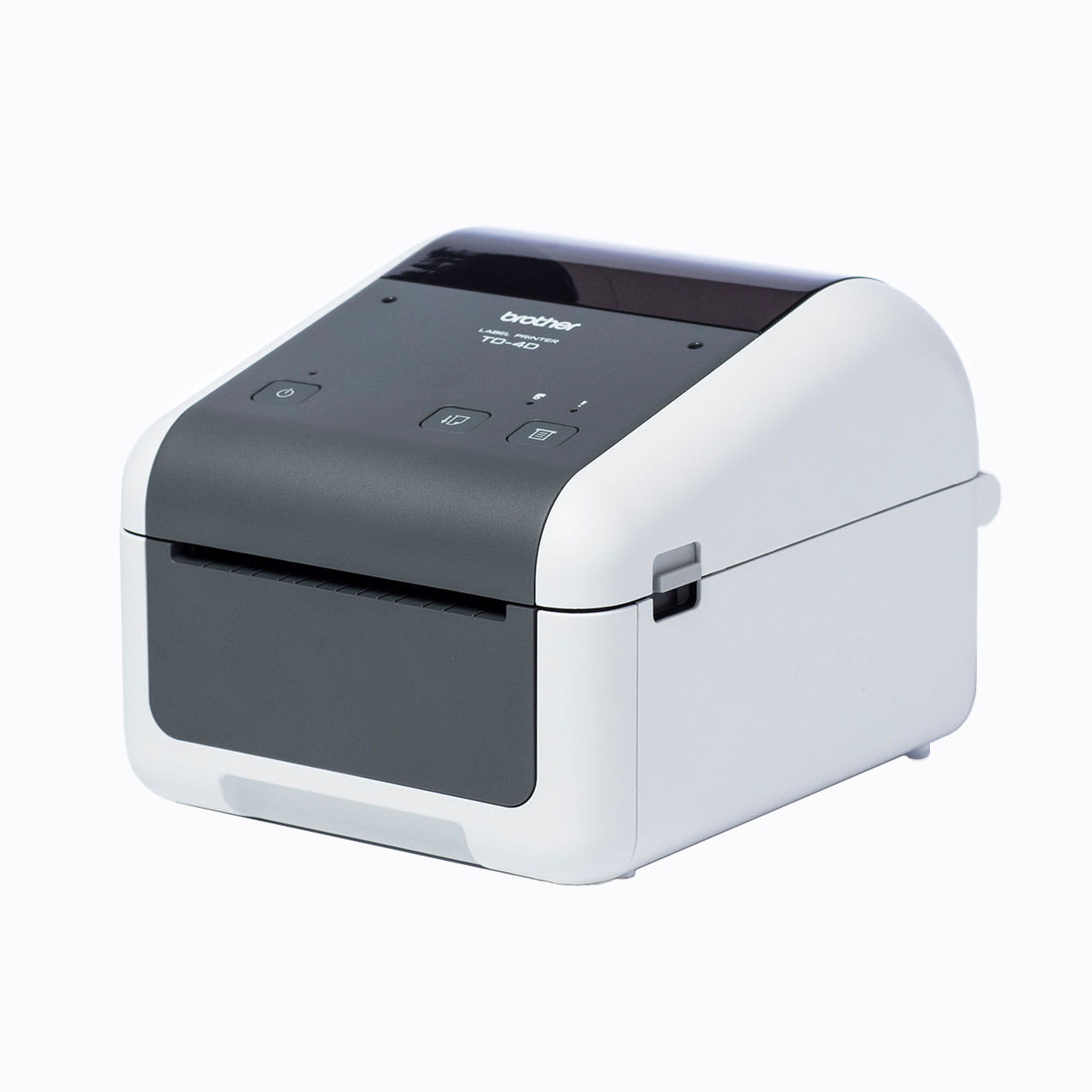

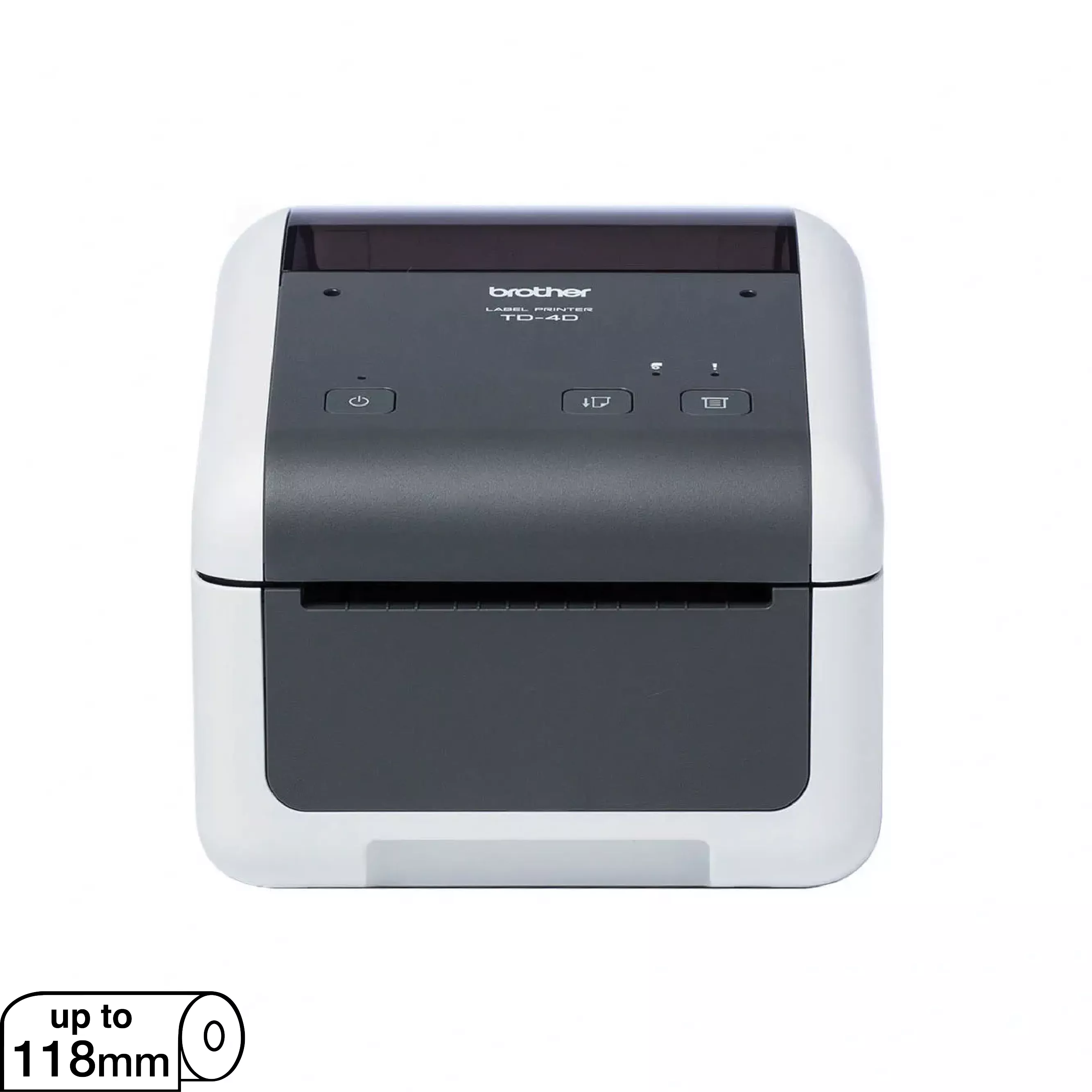

Professional wide format label printer
Normal Price 15,900.-
Please contact Brother Contact Center 0-2665-7777
8,990 THB
- Print up to 118mm RD rolls width
- USB, Serial connection
- Tear Bar
- Automatic media calibration

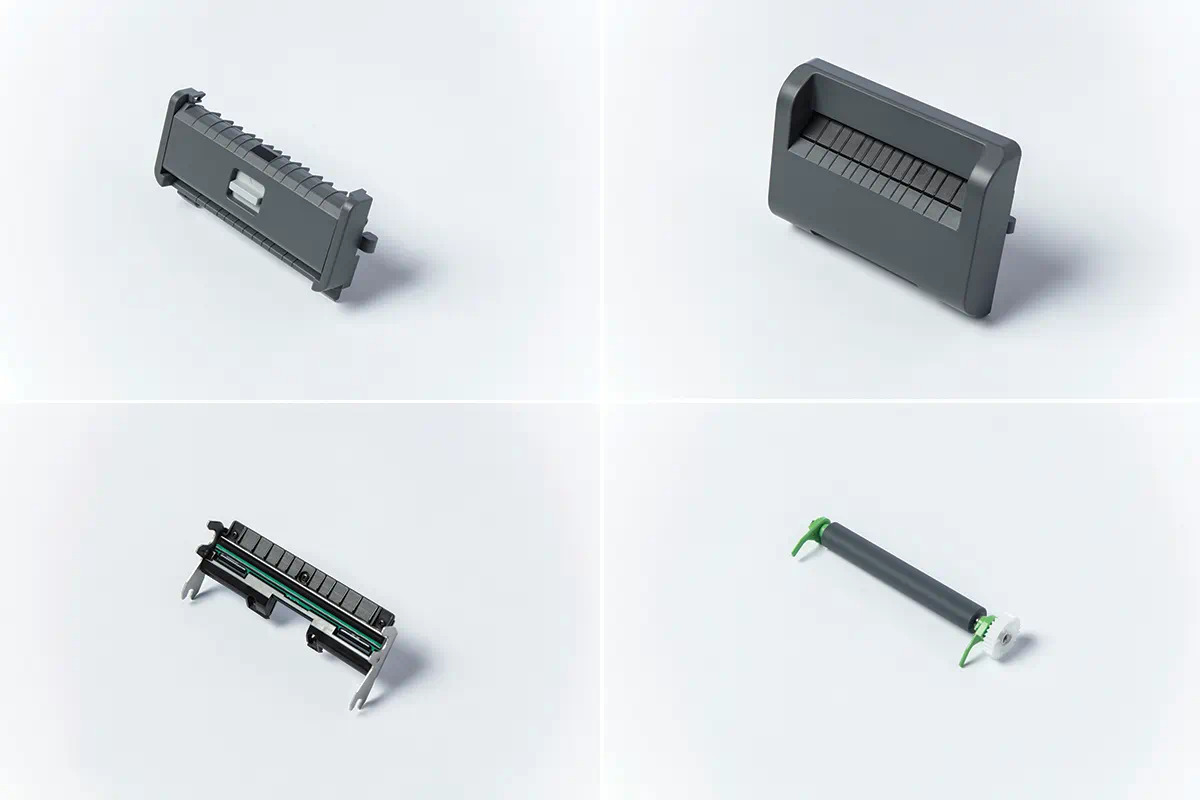

- Self-replaceable print head and roller
- 203dpi print resolution
Information
Overview
Seamless integration
For ease of integration, many printer command languages are supported. Including ZPL II emulation, Raster, CPCL emulation enabling integration into legacy systems.

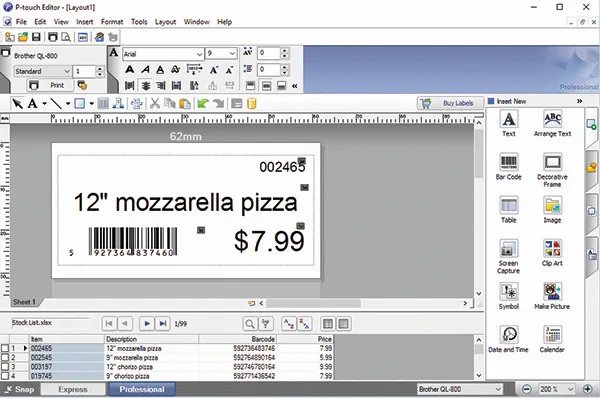

Print from your Windows PC
Custom labels are easily created using Brother's P-touch Editor. Add your company logo, symbols to hundreds of built-in images to the labels you create. Not to mention, linking your excel data to print large batches of labels.
Software support
Brother provides the tools for developers to integrate their printing applications. Printer drivers are available for Windows Operating Systems. Software Development Kits are available to embed label printing into existing software programs.
Specifications
Basic Specs
Media Type
Wristbands, Continuous, Die Cut, Fan Fold, Perforated ,Tag
Available Tape Widths
19 ~ 118 mm
Product Dimensions (Width X Depth X Height)
180 mm × 224 mm × 155 mm
Weight
2.08 kg
Print Speed
MAX 203.2mm/sec
Resolution
203 dpi
Barcode
Yes
Connectivity
Connectivity
USB
Media
Maximum Roll Width
19 ~ 118 mm
Printing Width
Up to 104.1 mm
Memory
Memory Buffer Size
64MB
Supported Commands
Supported Commands
P-touch Template, Raster, ESC/P, ZPL II emulation, CPCL emulation
