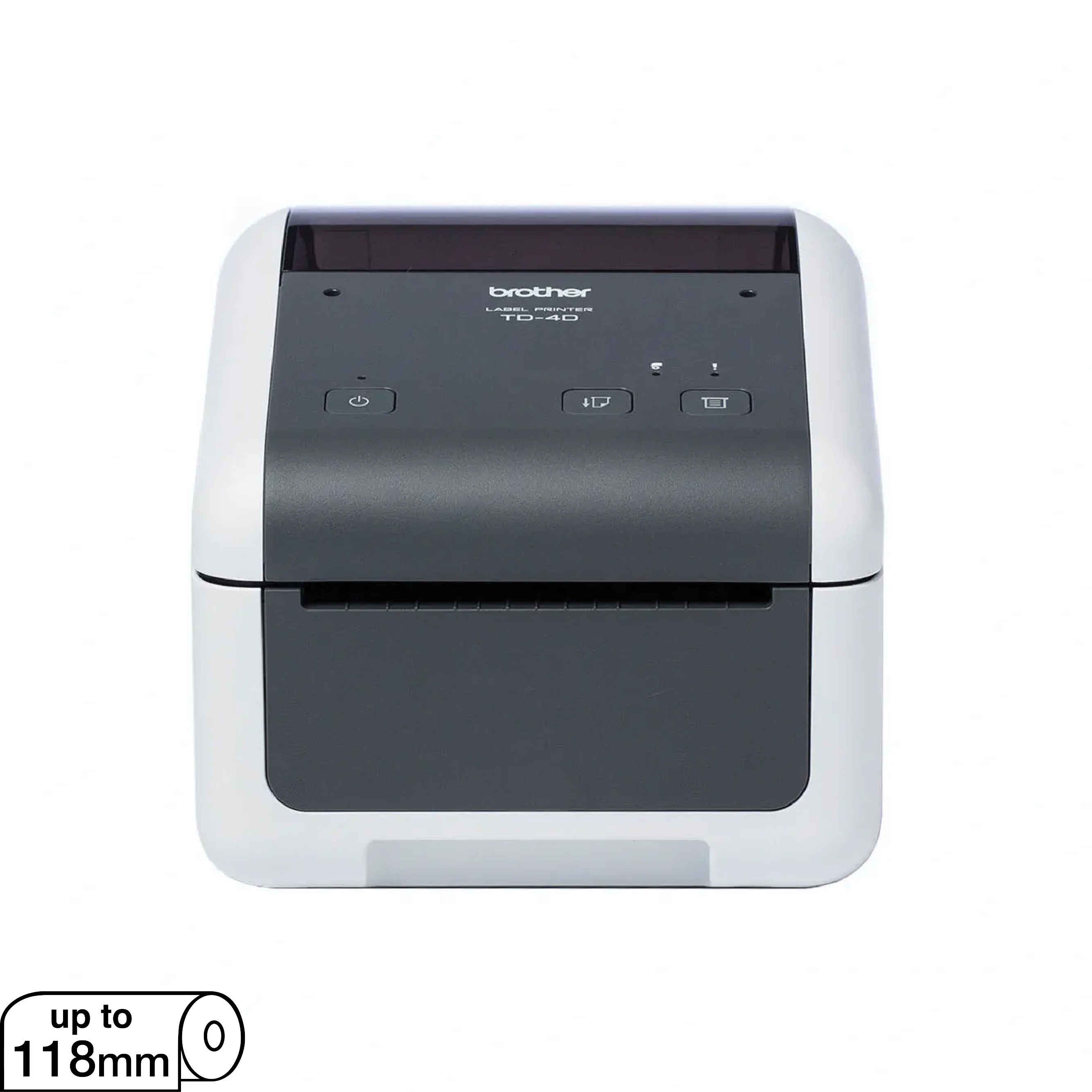

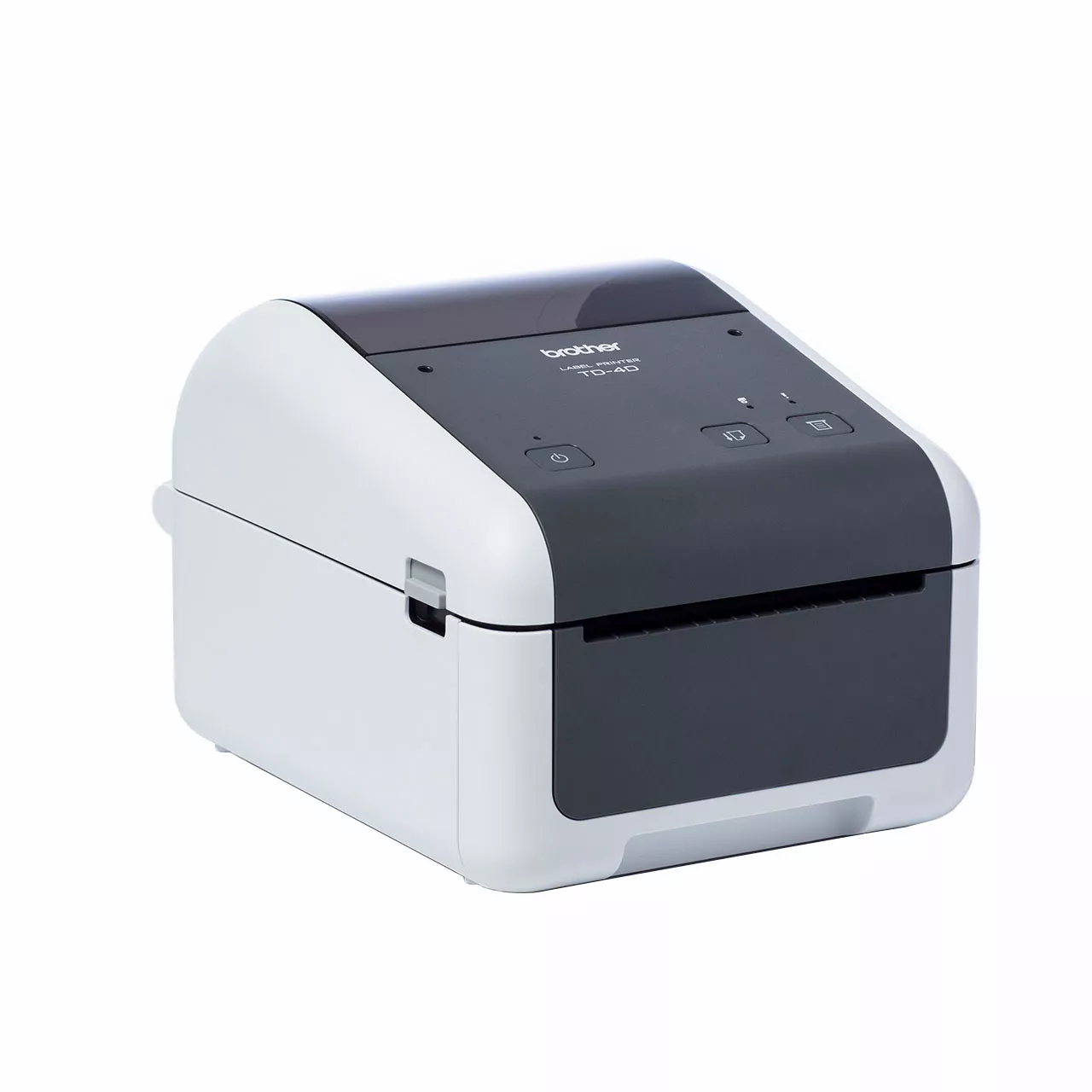

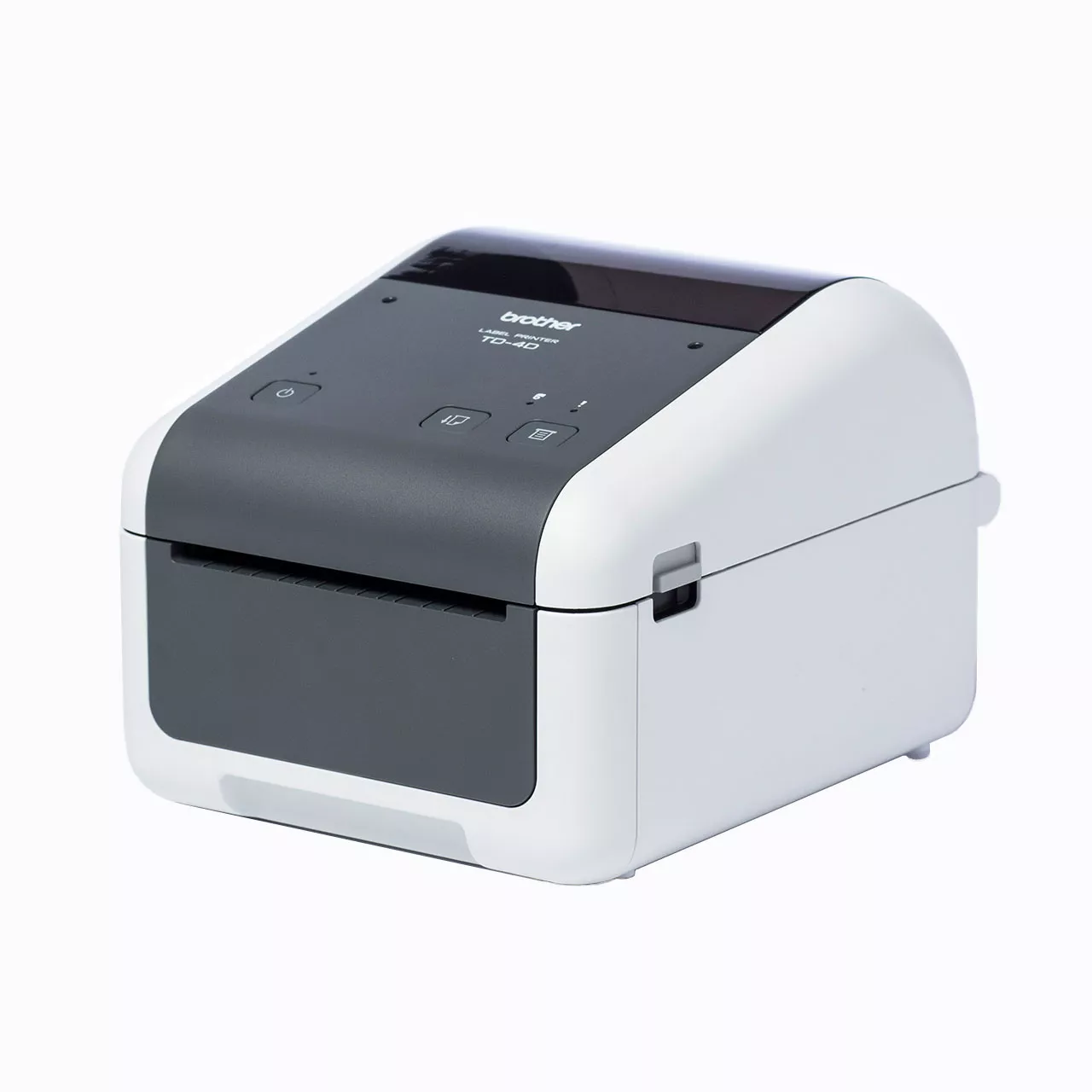

203dpi Direct Thermal Barcode, Label and Receipt Printer
Normal Price 18,900.-
Please contact Brother Contact Center 0-2665-7777
11,900 THB
- Print up to 118mm RD rolls width
- USB, Serial and Wired LAN connection
- Tear Bar
- Automatic media calibration
- Self-replaceable print head and roller
- 203dpi print resolution
Information
Overview
Network connectivity
Increase your teams productivity with this network desktop label printer. Sharing is made easier with the integrated network port.
Seamless integration
Understanding that integration into legacy systems is important, many printer command languages are supported. Including ZPL II emulation, Raster, CPCL emulation and many more.

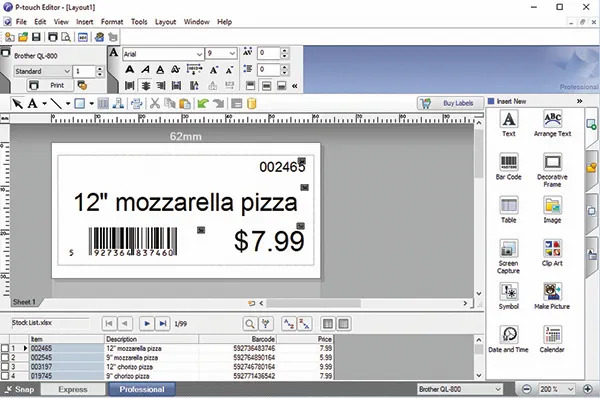

Print from your Windows PC
Custom labels are easily created using Brother's P-touch Editor. Add your company logo, symbols to hundreds of built-in images to the labels you create. Not to mention, linking your excel data to print large batches of labels.
Software support
Brother provides the tools for developers to integrate their printing applications. Printer drivers are available for Windows Operating Systems. Software Development Kits are available to embed label printing into existing software programs.
Specifications
Basic Specs
Display Type
SVGA/High Color or more
Media Type
Wristbands, Continuous, Die Cut, Fan Fold, Perforated ,Tag
Available Tape Widths
19 ~ 118 mm
Product Dimensions (Width X Depth X Height)
180 mm × 224 mm × 155 mm
Weight
2.08 kg
Print Speed
MAX 203.2mm/sec
Resolution
203 dpi
Barcode
Yes
Connectivity
Connectivity
USB
Media
Maximum Roll Width
19 ~ 118 mm
Printing Width
Up to 104.1 mm
Functions
Cutter
Die-cut labels / Tear off
Mirror Printing
Yes
Preview
No
Memory
File Storage
max 99 templates
Memory Buffer Size
64MB
Power
Power Source
AC adapter ( 100 - 240 V 50/60Hz)
Auto Power-Off
Yes
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, ZPL emulation, CPCL emulation
Show More
Show Less

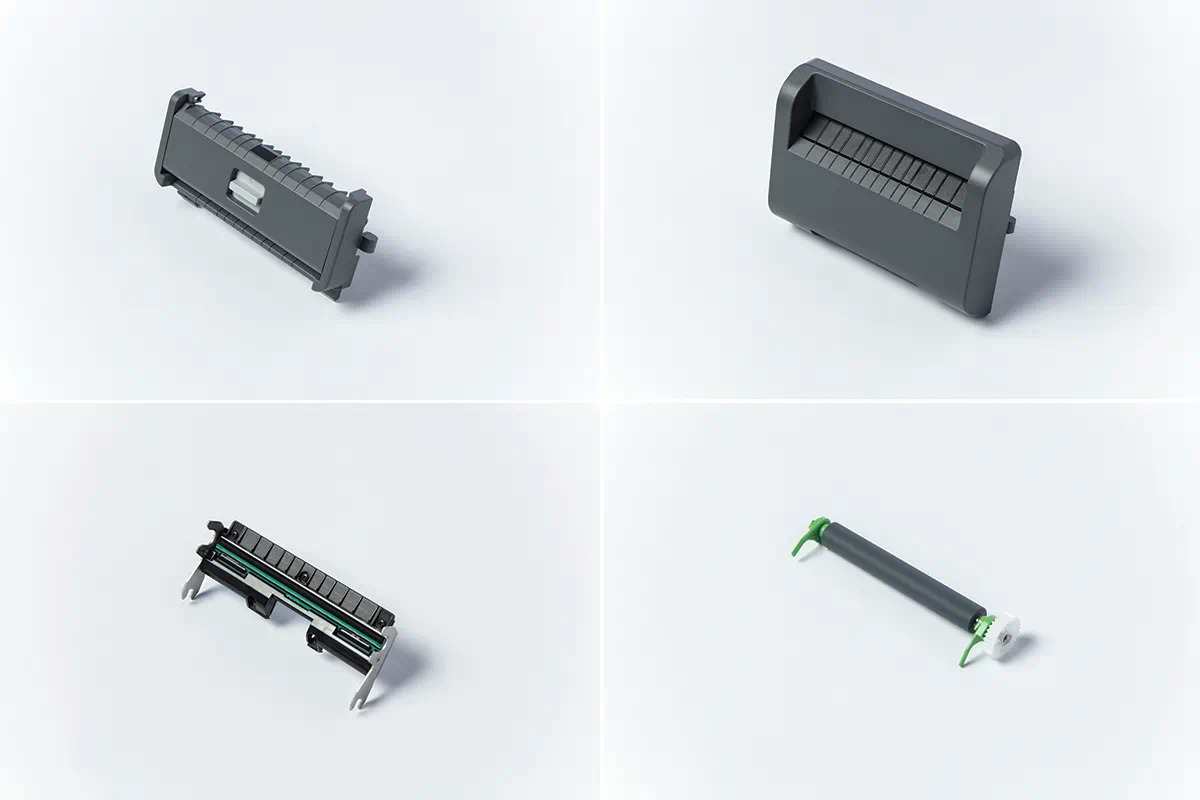

Accessories
