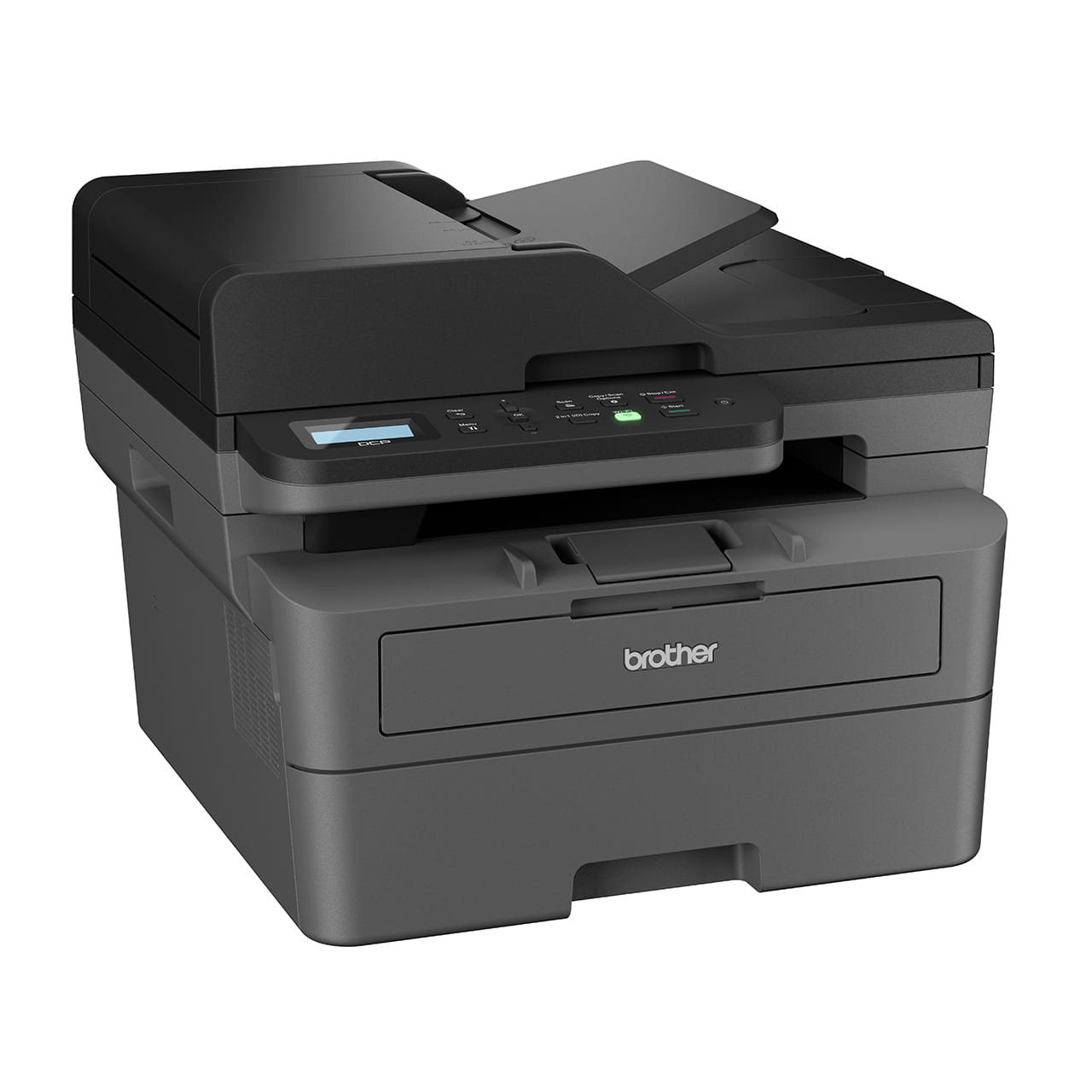

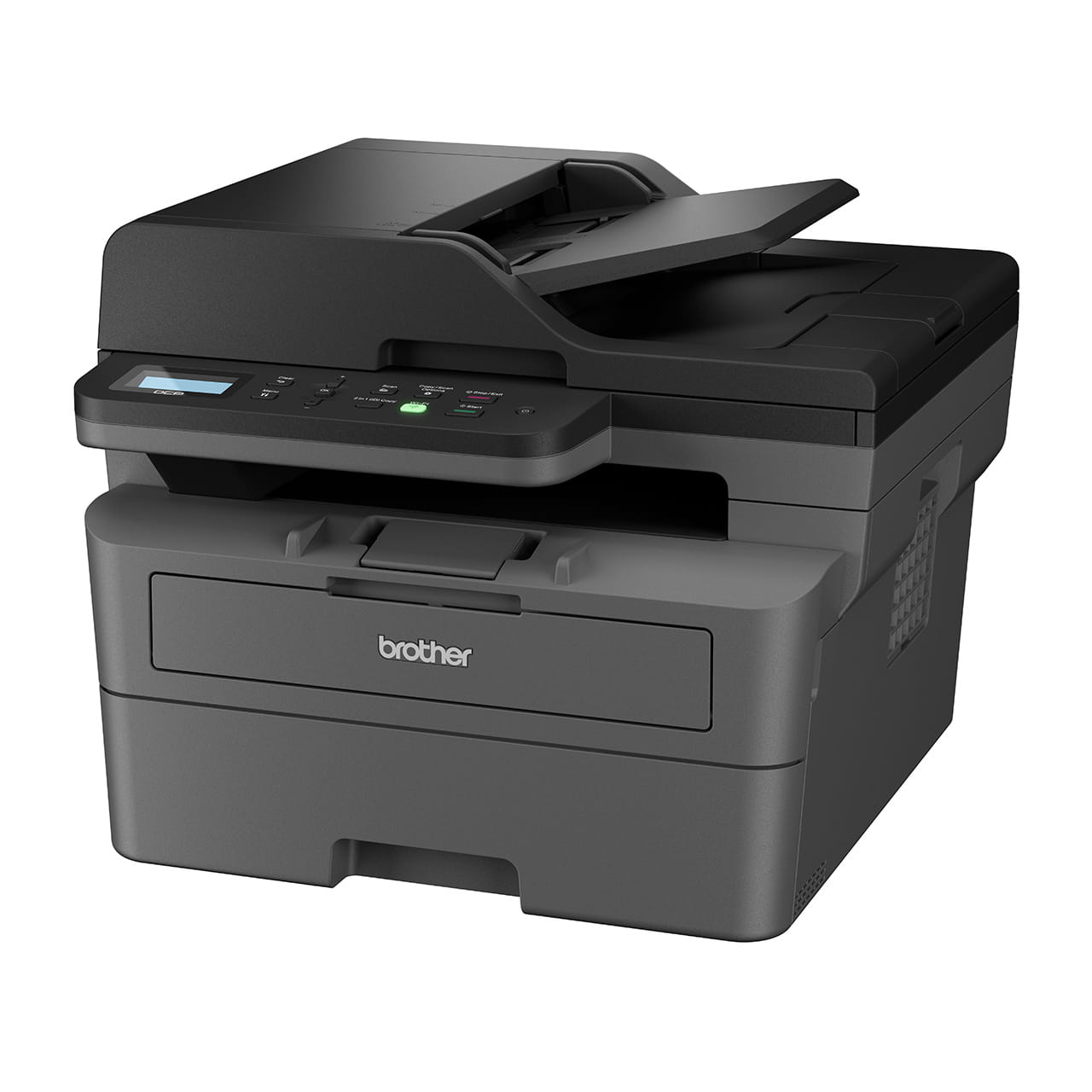

Compact Mono Laser Multi-Function Printer
- A4 print speed up to 34 ppm (Black)
- WiFi, AirPrint, Mopria, WiFi Direct, LAN, USB 2.0
- Auto 2-sided (Duplex) printing, 50 sheets Auto-Document Feeder (ADF), 2-line LCD
- Full capacity toner included. Yield up to 1200 pages (black)*
- Compatible with Mobile Connect app
- 3 years (plus 3 months extra upon when registration at www.brother.co.th within 15 days after purchasing not including parts)
Information
Overview
Specifications
Basic Specs
Functions
Print, Scan, Copy
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
410 mm × 399 mm × 319 mm
Weight
10.3 kg
Print Speed
Up to 34 (A4) / Up to 36 (Letter) ppm
Paper Type
Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick
Paper Size
A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, 16K (195x270 mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch
(Legal and Folio size paper are supported only in some countries.)
Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Resolution
Up to 1200 x 1200 dpi
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
Letter, Legal, Folio, Mexico Legal, India Legal (For Philippines)
A4 (Except for Philippines)
Paper handling
Tray #1 - Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Manual Feed Slot - Maximum Paper Weight
60 to 230 gsm (16 to 61 lb)
Manual Feed Slot - Maximum Paper Capacity
1 sheet
Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 50 sheets of 80 gsm plain paper
Paper Output
Up to 120 sheets (face down delivery to the face down output paper tray)
1 sheet (face up delivery to the face up output tray)
Copy
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Up to 600 x 600 dpi
Scan
Resolution - Interpolated
Up to 19200 x 19200 dpi (interpolated) (Windows Only)
Resolution - Scanner Glass
Up to 1200 x 1200 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 600 x 600 dpi
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX, IEEE 802.11a/b/g/n (Infrastructure Mode), IEEE 802.11a/g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
2 Line LCD (10 characters / 2 byte, 20 characters / 1 byte) (For Korea and Taiwan)
2 Line LCD (16 characters) (Except for Korea and Taiwan)
Memory Capacity
256 MB
Operation
Power Source
220 to 240 V AC 50/60 Hz
Power Consumption - Ready
Approximately 43 W
Power Consumption - Sleep
Approximately 4.1 W
Power Consumption - Power Off
Approximately 0.08 W
Supported Operating Systems
Supported OS
Windows 10, 11, Server 2012, Server 2012 R2, Server 2016, Server 2019, Server2022
