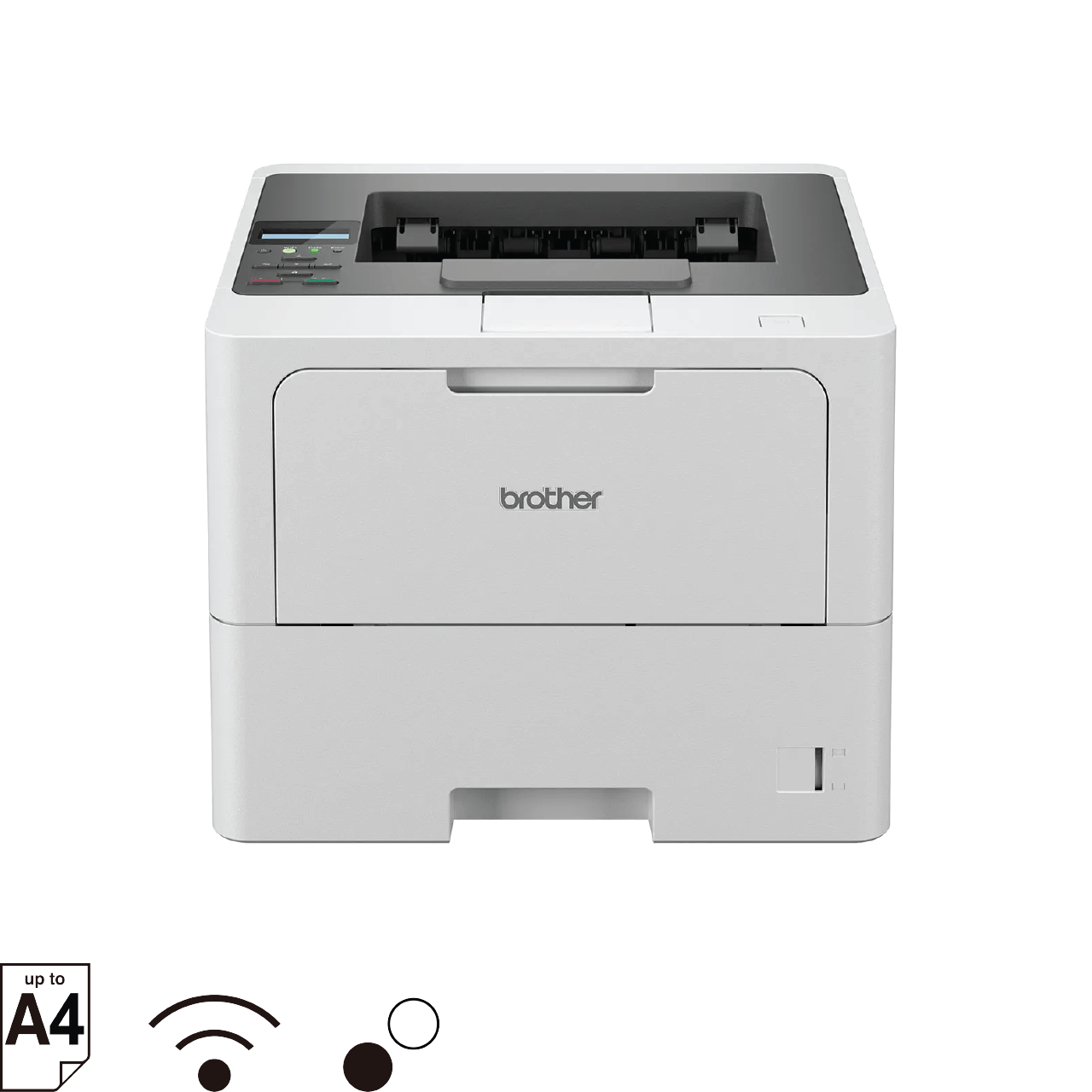

Fast Printing Speed monochrome laser printer
- A4 print speed up to 50 ppm (Black)
- WiFi, AirPrint, Mopria, WiFi Direct, LAN, USB 2.0
- Auto 2-sided (Duplex) printing, 1-line LCD
- Full capacity toner included. Yield up to 3000 pages (black)*
- Compatible with Mobile Connect App
- 3 years On-site Warranty (plus 3 months extra upon when registration at www.brother.co.th within 15 days after purchasing not including parts)
Information
Overview
Specifications
Basic Specs
Functions
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
373 mm × 388 mm × 289 mm
Weight
10.7 kg
Print Speed
Up to 50 (A4) / Up to 52 (Letter) ppm
Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick
Paper Size
A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch
Maximum Paper Capacity
Up to 1,660 sheets of 80 gsm Plain Paper (with Added Optional Trays)
Resolution
Up to 1200 x 1200 dpi
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
A4, Letter, Legal, Folio, Mexico Legal, India Legal
(A4 size paper are supported only in some countries.)
Paper handling
Tray #1 - Maximum Paper Weight
60 to 163 gsm (16 to 43 lb)
Tray #1 - Maximum Paper Capacity
Up to 520 sheets of 80 gsm plain paper
Tray #1 - Paper Size
A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Tray #2 - Maximum Paper Weight
60 to 120 gsm (16 to 32 lb)
Tray #2 - Maximum Paper Capacity
LT-5505: Up to 250 sheets of 80 gsm plain paper
LT-6505: Up to 520 sheets of 80 gsm plain paper
Multi-purpose Tray - Maximum Paper Weight
60 to 230 gsm (16 to 60 lb)
Multi-purpose Tray - Paper Size
Width: 69.8 to 215.9 mm (2.75" to 8.5")
Length: 127 to 355.6 mm (5" to 14")
Envelope: COM-10, DL, C5, Monarch
Multi-purpose Tray - Maximum Paper Capacity
Up to 100 sheets of 80 gsm plain paper
Paper Output
Up to 150 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray)
1 sheet (face up delivery to the face up output tray)
Connectivity
WiFi Direct
Yes
Connectivity
Hi-SpeedUSB2.0, IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11a/g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
1 Line LCD (16 characters)
Memory Capacity
1 GB (256 MB : For Australia)
Operation
Power Source
220 - 240 V AC 50/60 Hz
Power Consumption - Printing
Approximately 710 W
Power Consumption - Ready
Approximately 31 W
Power Consumption - Sleep
Approximately 5.5 W
Power Consumption - Power Off
Approximately 0.05 W
Noise Level
54 dB (A)
Supported Operating Systems
Supported OS
Windows 10, Windows 11, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
macOS v11, macOS v12, macOS v13
