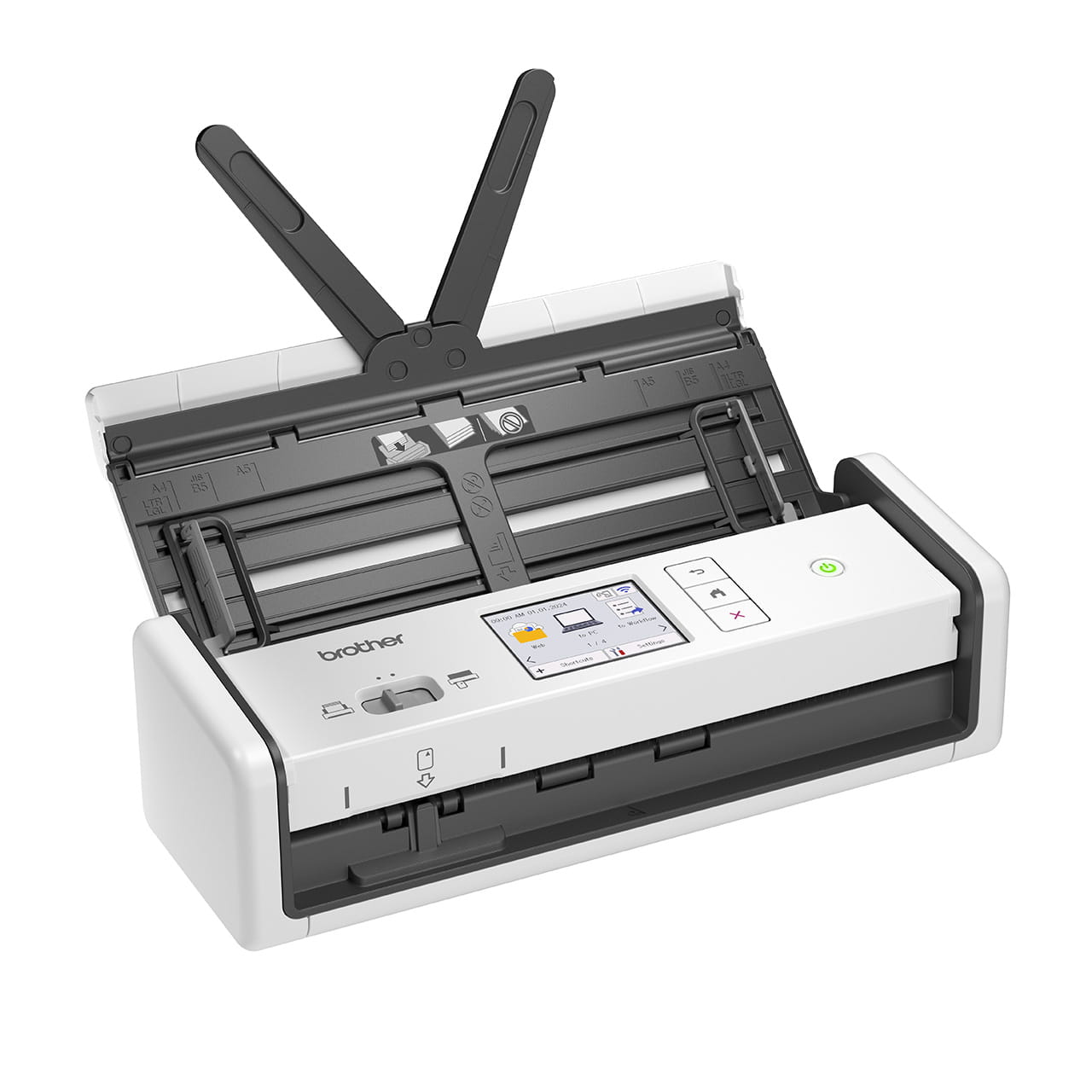

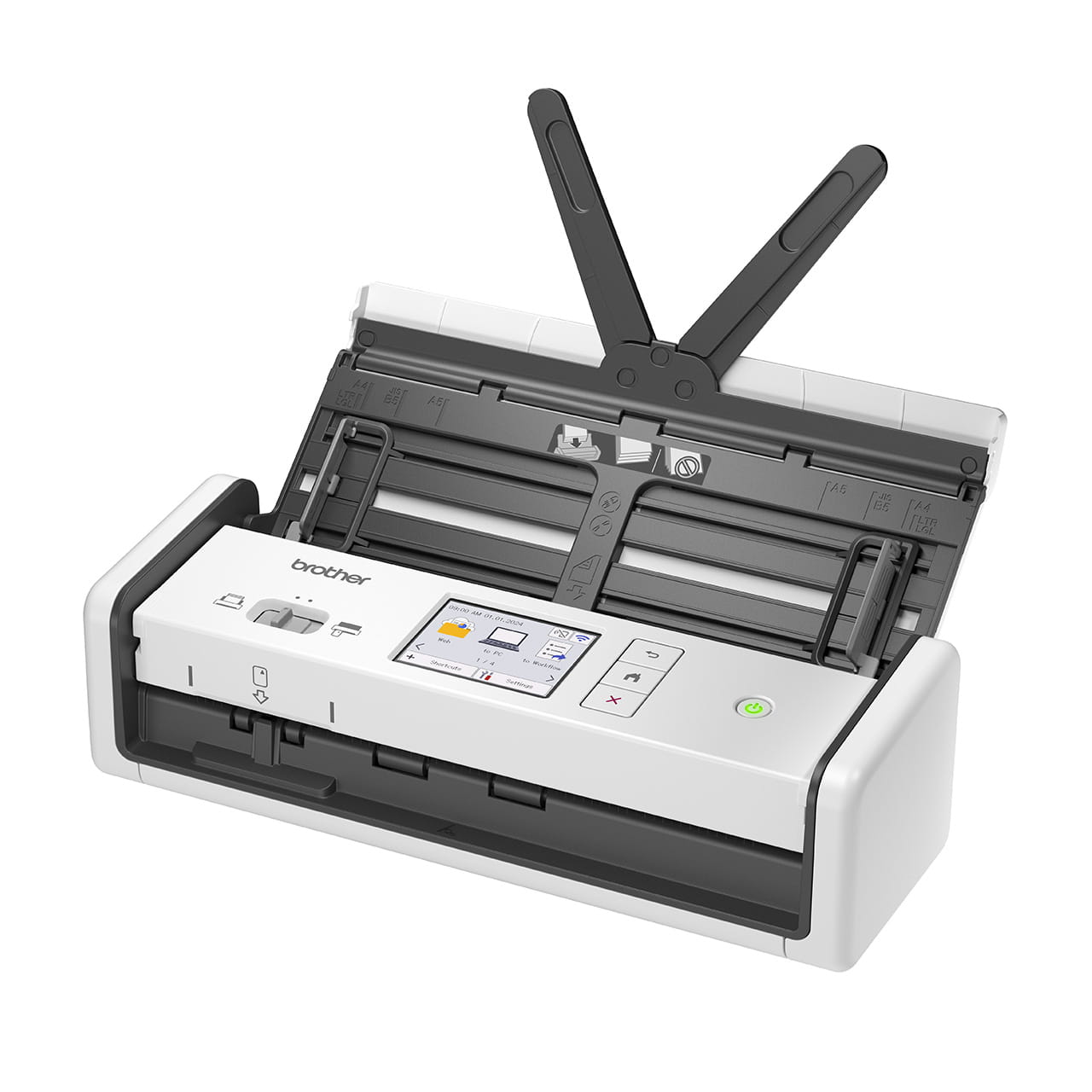

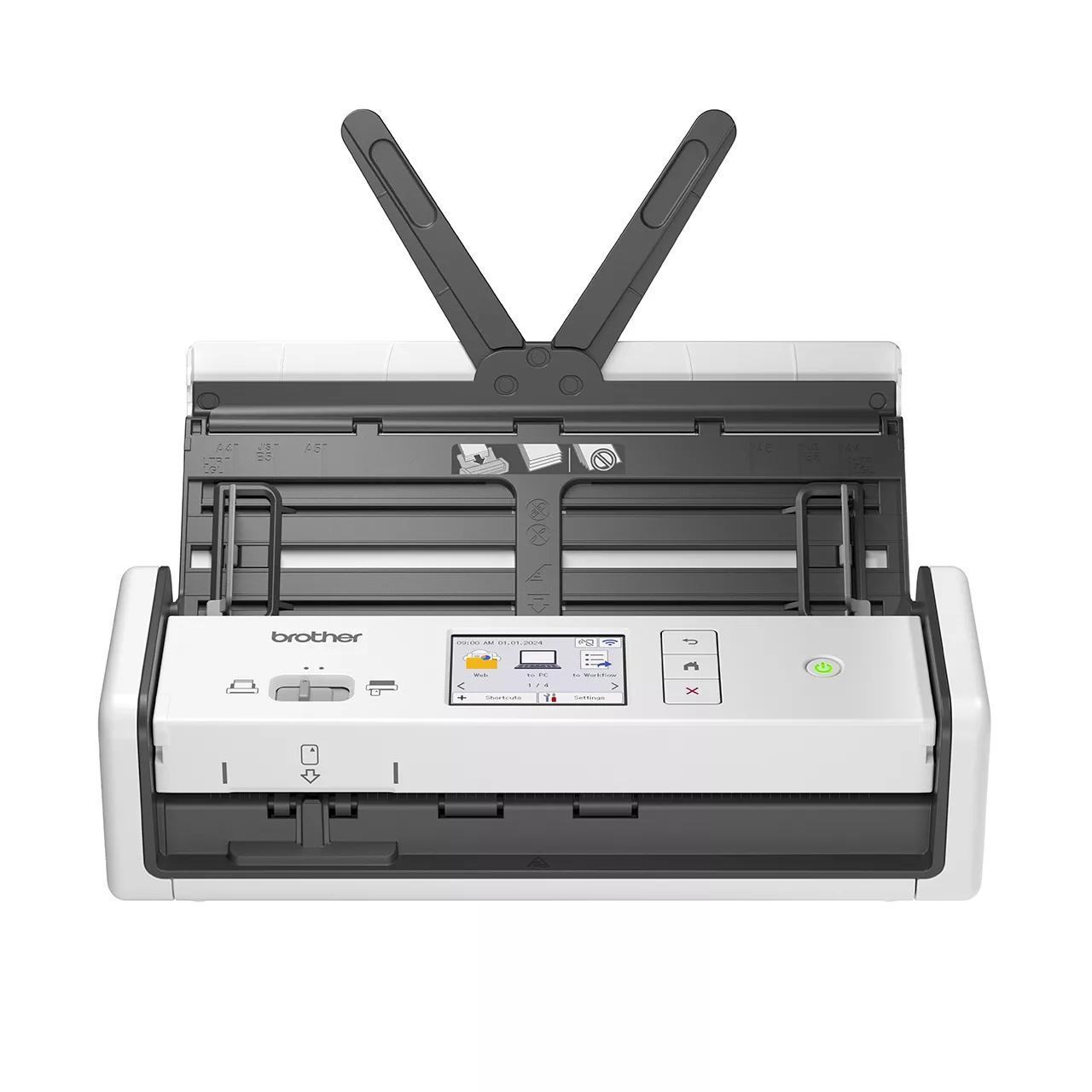

Portable Wireless Scanner
11,990 THB
- 30ppm / 60ipm, 2-sided (duplex) colour scan speed @ 300dpi
- 20 sheets Automatic Document Feeder (ADF)
- Wireless network connectivity
- Dedicated plastic ID card slot
- Zero-touch scanning with auto start scan feature
- Create up to 20 shortcuts on the easy to use 2.8" colour touchscreen
Information
Overview
Specifications
Basic Specs
Scanning Speed
30ppm/300dpi, 7ppm/600dpi
Document Size - Multiple Sheets - Width
50.8 mm to 215.9 mm
Document Size - Multiple Sheets - Length
70 mm to 355.6 mm
Colour / Monochrome
Yes / Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
48 bit colour processing
Colour Depth - Output
24 bit colour processing
Resolution - Optical
Up to 600 x 600 dpi
Resolution - Interpolated
Up to 1200 x 1200 dpi
Document Scanning Width / Length
Up to 215.9 mm
Product Dimensions (Width X Depth X Height)
288 mm × 101 mm × 85 mm
Weight
1.42 kg
ADF (Automatic Document Feeder)
Up to 20 sheets
Memory Capacity
SDRAM: 512MB
Connectivity
Connectivity
Wireless LAN IEEE 802.11 b/g/n (Infrastructure Mode), IEEE 802.11 g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
Setup Support Utility
WPS
Display Type
Touchscreen LCD
2.8"(71.1mm) Colour Touchscreen LCD
Operation
Power Source
AC Adapter: 100 - 240 V AC 50/60 Hz
DC: 5V, 3A
Power Consumption - Scanning
AC: Approximately 12 W
DC: Approximately 10 W
Power Consumption - Ready
AC: Approximately 6.4 W
DC: Approximately 5.2 W
Power Consumption - Power Saving / Deep Sleep
AC: Approximately 1.5 W
DC: Approximately 1.1 W
Power Consumption - Power OFF
AC: Approximately 0.1 W
DC: Approximately 0.1 W
Temperature Operating
5 ℃ to 35 ℃
Humidity - Operating
20% to 80%
Humidity - Storage
10% to 90%
Compliance
TWAIN Compliant - Windows®
Windows 10 / 11
WIA Compliant - Windows®
Windows 10 / 11
