High-speed network desktop scanner
- 2-sided scan up to 80 images per minute
- 80 sheet Automatic Document Feeder (ADF)
- Mobile Connect App
- Driver compatibility with TWAIN (Win, macOS), WIA, ISIS, Linux SAN
- Advanced image processing and batch scan
- Ultrasonic Multifeed Sensor, Separation Switch
Information
Overview
Expertly designed with businesses in mind, our scanners help to streamline business processes whilst providing an effortless, user-friendly experience. They enable you to intelligently capture and optimise the contents of your documents and easily collaborate with colleagues.

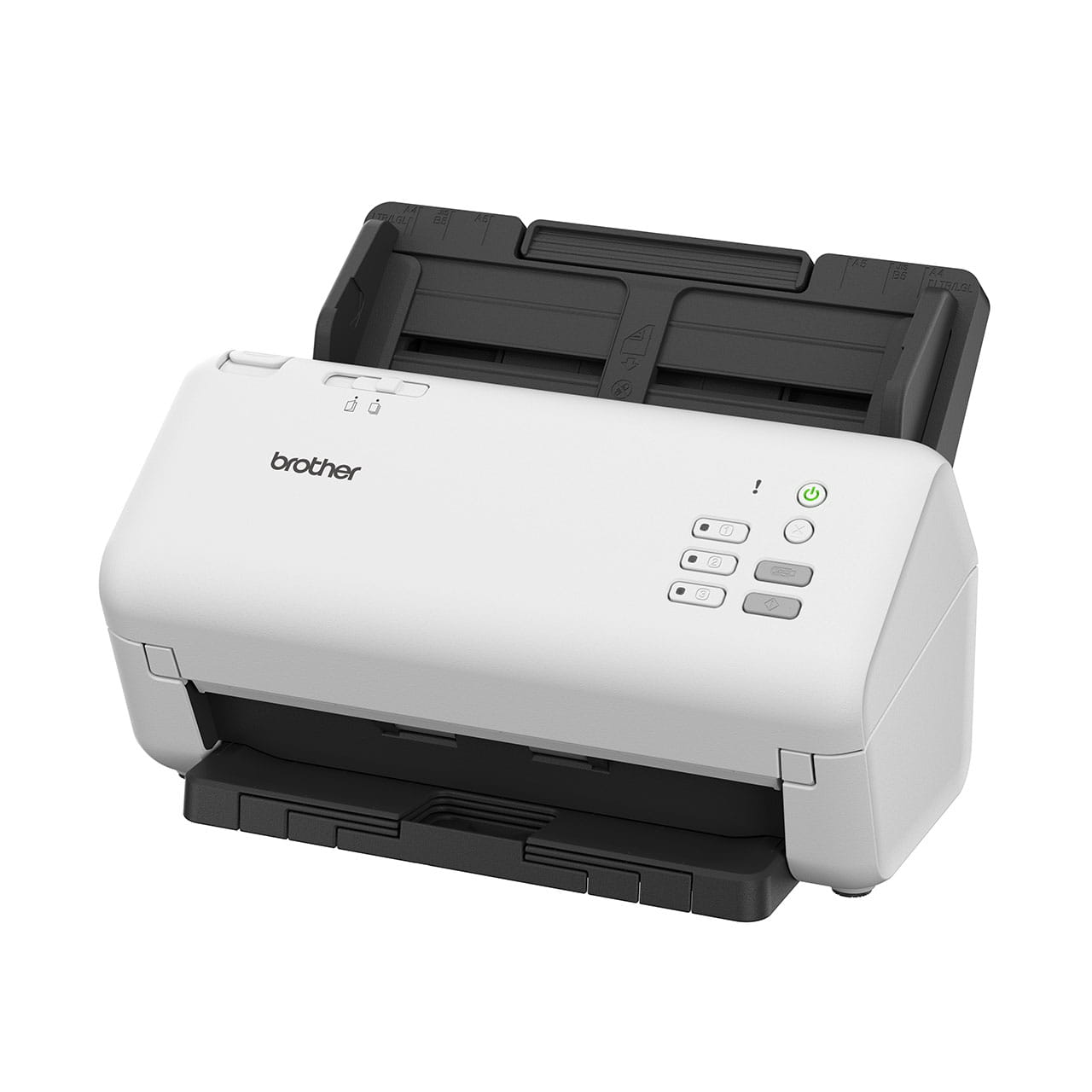

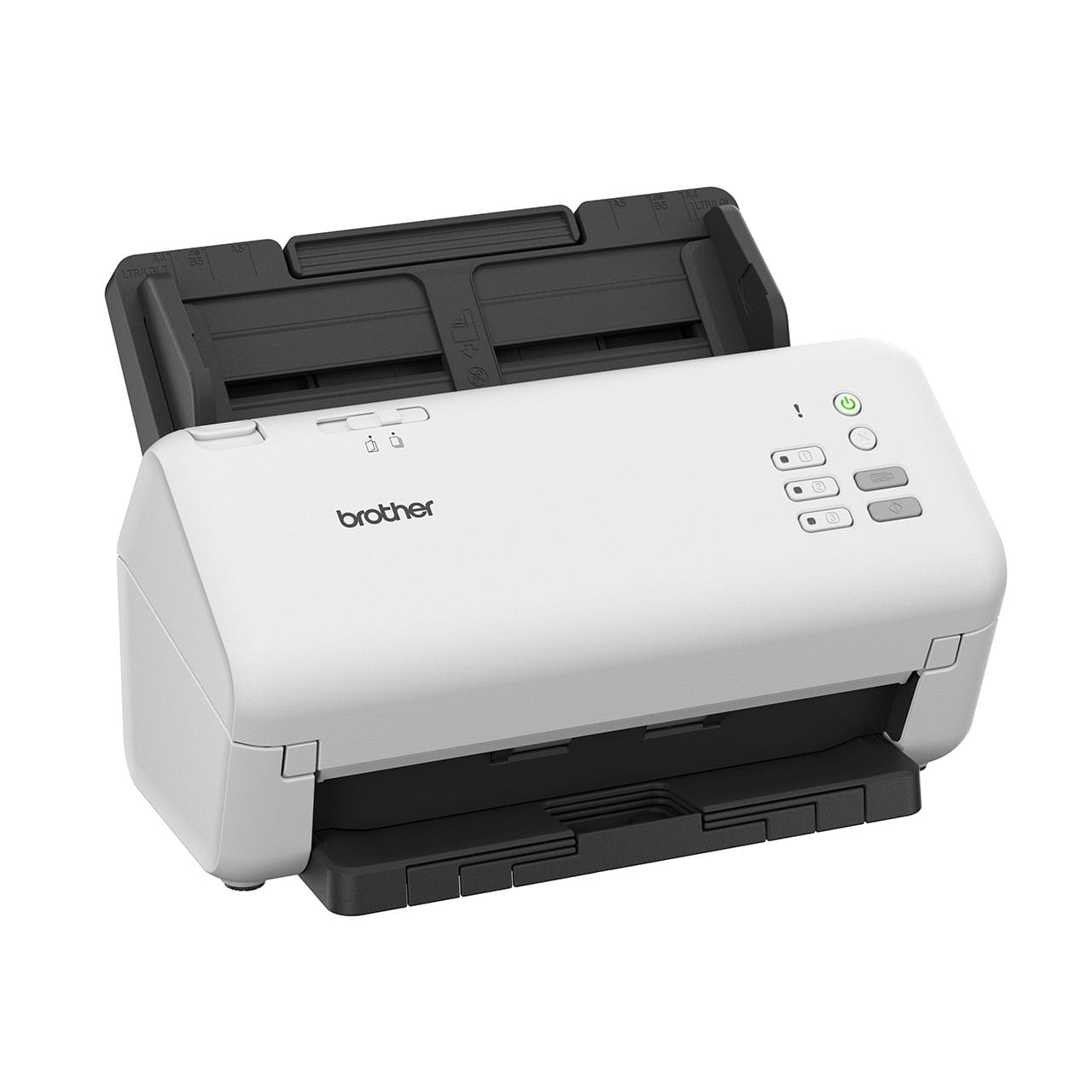

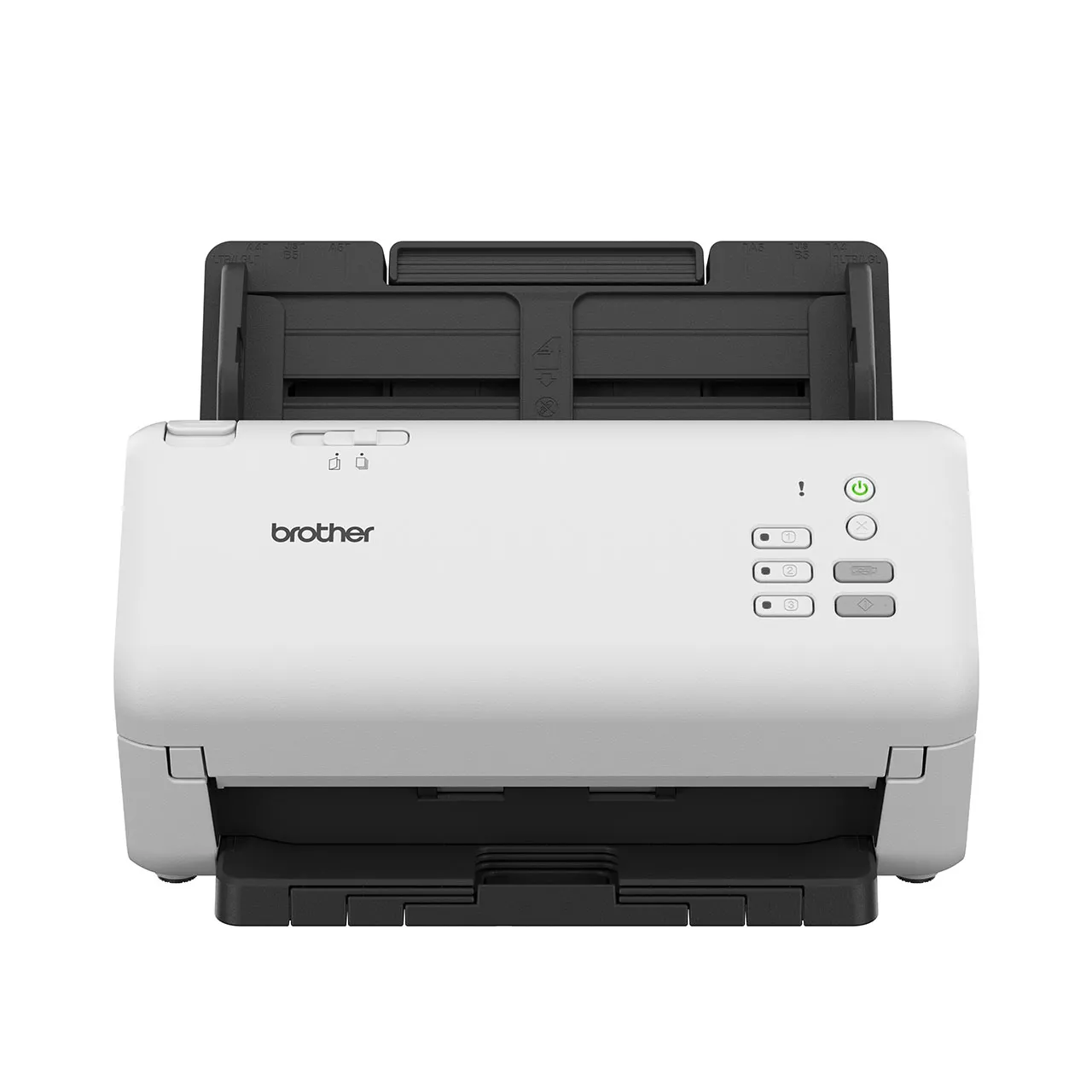

High-speed network desktop scanner ADS-4300N
High-volume scanning
Built for demanding, high-volume workplaces, Brother’s range of Kofax certified desktop scanners allow busy departments to batch scan and archive a larger number and wider variety of documents quickly and easily. From batch scanning large volumes of very thick or thin paper documents to multi-page, mixed batch media, through to embossed plastic cards, all can be scanned continually with the help of a Separation Switch.
Automatically route documents with barcodes
Reduce the labour-intensive task of scanning several documents, saving and then renaming files. Barcode Utility enables documents that have a barcode to be scanned and saved to the required location, automating the separation of a batch of documents and routing each individual file to the designated folder on your network.
Easy Maintenance
Reduced maintenance costs and downtime due to the high-volume scanning capacity and reliable roller mechanisms. Easy access to the paper path allows you to clear any paper jams and the CIS Cleaning Alarm reminds you to clean the unit when required, without having to call a service centre.
Specifications
Basic Specs
Scanning Speed
40 ppm
Document Size - Multiple Sheets - Width
50.8 mm to 215.9 mm
Document Size - Multiple Sheets - Length
50.8 mm to 355.6 mm
Document Size - Single Sheet - Width
50.8 mm to 215.9 mm
Colour / Monochrome
Yes/Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
48-bit colour processing
Colour Depth - Output
24-bit colour processing
Resolution - Optical
Up to 600 dpi × 600 dpi
Resolution - Interpolated
Up to 1,200 dpi × 1,200 dpi
Document Scanning Width / Length
Up to 215.9 mm
Product Dimensions (Width X Depth X Height)
299.5 mm × 190.5 mm × 215.9 mm
Weight
2.64 kg
ADF (Automatic Document Feeder)
Up to 80 pages (Paper: 80 g/m²)
Memory Capacity
512 MB
Operation
Power Source
AC: 100-240V, 50/60 Hz
Power Consumption - Scanning
Approx. 24W
Power Consumption - Ready
Approx. 6.8W
Power Consumption - Power Saving / Deep Sleep
Approx. 1.7W
Power Consumption - Power OFF
Approx. 0.1W
Temperature Operating
5°C to 35°C
Humidity - Operating
20% to 80%
Humidity - Storage
10% to 90%
Compliance
TWAIN Compliant - Windows®
Windows Server 2012 / Windows Server 2012 R2 / Windows Server 2016 / Windows Server 2019
TWAIN Compliant - Macintosh
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
WIA Compliant - Windows®
Windows 7 (SP1) / Windows 8.1 / Windows 10
ICA Compliant - Macintosh
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
ISIS™ Compliant - Windows®
Windows 7 (SP1) / Windows 8.1 / Windows 10
