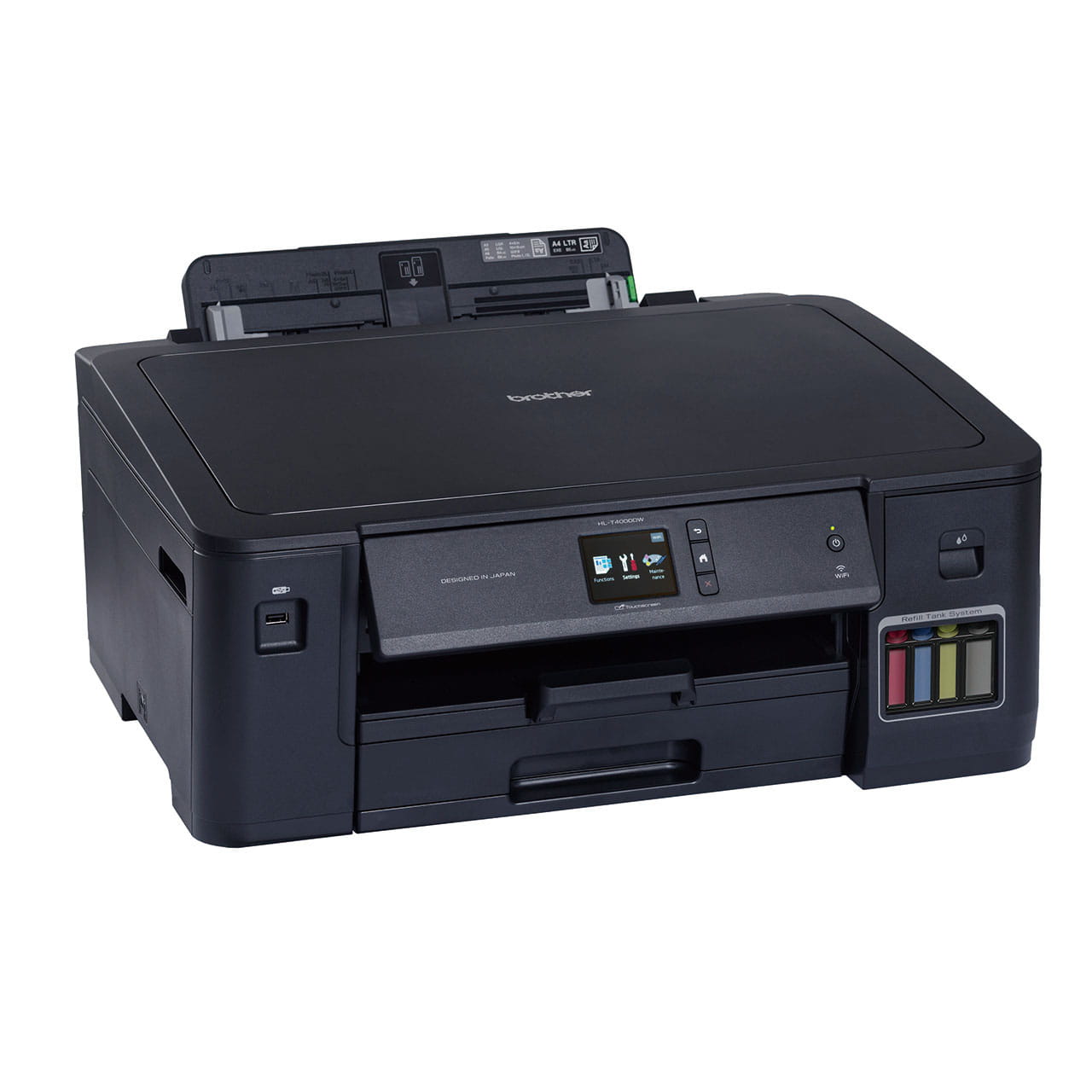

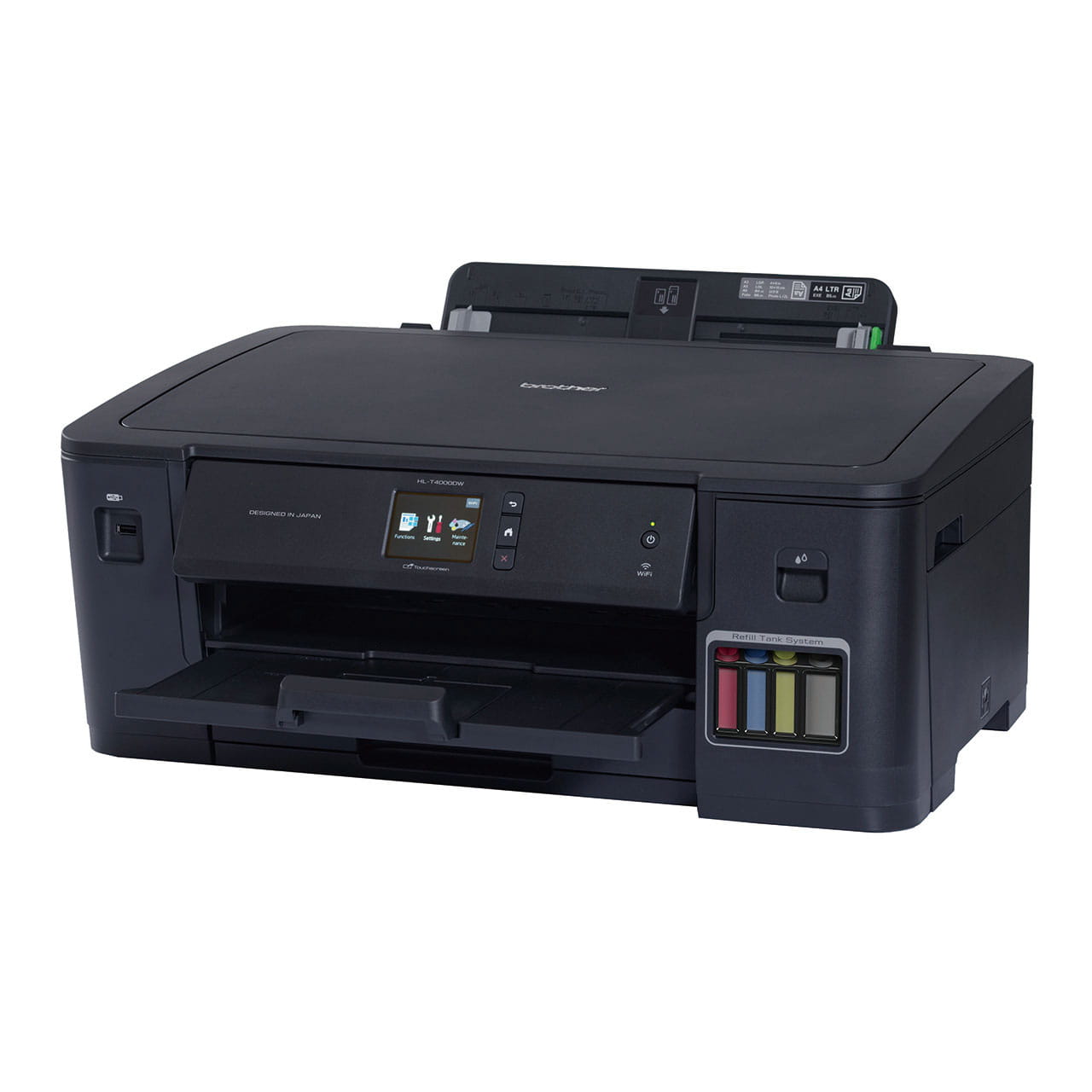

Efficiency Engineered - A3 Refill Ink Tank Printer with Wireless & Ethernet Connectivity, Automatic 2-sided Colour Print, Professionally Designed for Fast Print Speeds, Low Cost High Photo Quality with Ultra High Yield Ink Bottles, Wi-Fi Direct, Mobile & USB Print
- A4 print speed up to 22 ipm (Black)/ 20 ipm (Colour)
- WiFi, AirPrint, Mopria, WiFi Direct, LAN, USB 2.0
- Auto 2-sided (Duplex) printing, 2.7” Colour LCD touchscreen
- Full ink bottles included. Yield up to 6000/5000 pages (black/colour)*
- Compatible with Brother iPrint&Scan mobile app
- 2 years included print head or 100,000 sheets. (plus 3 months extra upon when registration at www.brother.co.th within 15 days after purchasing not including parts)
Information
Overview
Low Cost, High Quality
Cost Efficient
Save more with Brother's ultra high-yield ink bottles, as well as automatic 2-sided printing.
6500 pages (black)* | 5000 pages (colour)* | 50% cost savings
Easy to Refill
Enjoy quick, fuss-free refills and easy monitoring of your printer's ink levels with Brother Refill Tank System.
Quality Prints
Create striking artwork and sleek reports with superior colour vibrancy and high print resolution of 1200x4800 dpi.
Uncompromised Efficiency
Larger Printing Options
Think bigger and print larger with up to A3 capabilities.
Do More in Less Time
Speed up your workflow with fast print speeds and quick first print out times.
22/20 images per minute^ | 35/27 pages per minute (fast mode) | 5.5/6 sec FPOT^^
Effortless Paper Handling
Meet your every printing need on various paper sizes and types with multiple paper input options in a single machine.
250 sheet standard paper tray | 100 sheets multi-purpose tray
Flexible Connectivity
Wireless/Wired Connectivity
Connect multiple users at once and enjoy convenient printing at home or in the office with both wireless and Ethernet networks.
Print on the Go
Enjoy the freedom of mobile prints and scans, and direct access of innovative features on your Brother machine.
Brother Cloud Apps | Brother Webconnect
USB Direct Print
Photo printing from your USB flash drive becomes convenient via the front-access port.
User-friendly and Secure
Intuitive Interface
Check notifications on printer and ink status, and solve any printer errors quickly.
2.7"" large LCD touchscreen
Integrate into IT Security Infrastructure
Easily manage printer access and login authentication through a central management system with Active Directory and User Authentication.
Limit Unauthorised Access
Secure Function Lock gives you greater control over group or individual usage by allowing the administrator to limit print functions.
**Quoted approx. yields are extrapolated based on Brother original methodology using Test Pattern ISO/IEC 24712. Quoted approx. yields are not based on ISO/IEC 24711.
^Based on ISO/IEC 24734.
^^^ Based on ISO/IEC 17629.
Specifications
Basic Specs
Functions
Printer Type
Inkjet Printer
Product Dimensions (Width X Depth X Height)
575 mm × 477 mm × 310 mm
Weight
16.1 kg
Print Speed
22/20 ipm
Paper Type
Plain, Inkjet, Glossy (cast/resin), Recycled
Paper Size
A4, Letter, Executive, B5
Maximum Paper Capacity
Up to 250 sheets (80 gsm)
Resolution
up to 1200x4800 dpi
Borderless
A4, Letter, A6, Photo (10 cm x 15 cm), Photo L (89 mm × 127 mm), Photo 2L (13 cm × 18 cm), Index Card (127 mm × 203 mm), A3, Ledger
2-Sided (Duplex) - Paper Size
A3, Ledger, JIS B4, Legal, Folio, A4, Letter, Executive, A5, JIS B5, JIS B6, Mexico Legal, India Legal
Paper handling
Tray #1 - Paper Type
Plain paper, Inkjet paper, Glossy paper(cast/resin), Recycled paper
Tray #1 - Maximum Paper Capacity
Max. 250 sheets of 80 gsm plain paper
Multi-purpose Tray - Paper Type
Plain paper, Inkjet paper, Glossy paper(cast/resin), Recycled paper
Multi-purpose Tray - Maximum Paper Capacity
Max. 100 sheets, 80 gsm
Paper Output
Up to A4/Letter: Max. 100 sheets, 80 gsm
Over A4/Letter: Max. 50 sheets, 80 gsm
Connectivity
Connectivity
Hi-SpeedUSB2.0, LAN, Wireless LAN IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
2.7” TFT Colour LCD
Memory Capacity
128 MB
Operation
Power Source
AC 220 V to 240 V 50/60Hz
Power Consumption - Ready
Approx. 5.0 W
Power Consumption - Sleep
Approx. 1.2 W
Power Consumption - Power Off
Approx 0.04 W
Noise Level
Approx. 50dB(A)
Supported Operating Systems
Supported OS
Windows 7 SPI/8/8.1/10 Server 2008/2008 R2/2012/2012 R2/2016
macOS v10.11.6/10.12.x/10.13.x
