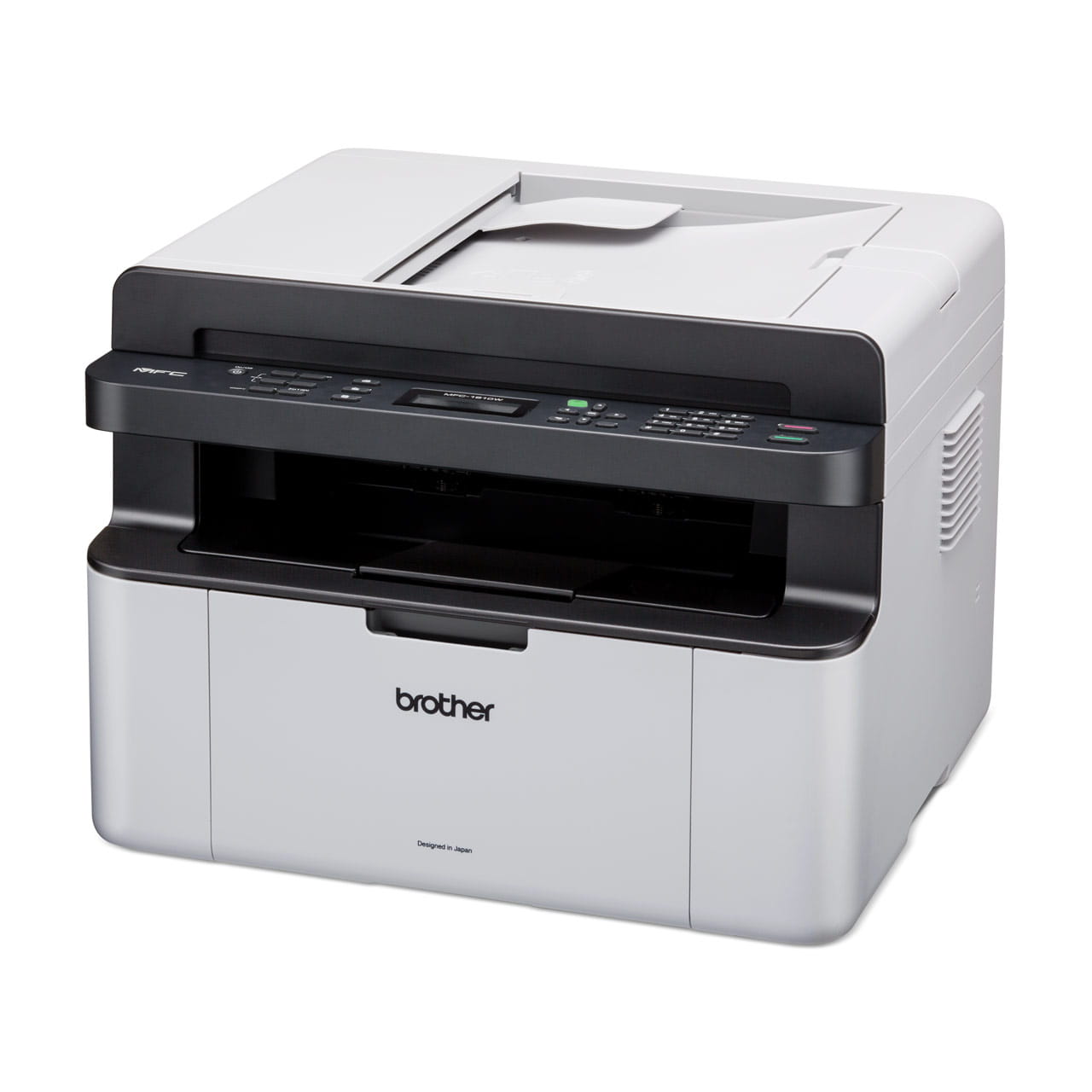

Compact Monochrome Laser Multi-Function Centre with Fax, ADF and Wireless Capability
- A4 print speed up to 20 ppm (Black)
- WiFi, Mopria, WiFi Direct, USB 2.0
- 20 sheets Auto-Document Feeder (ADF), 1.8” LCD screen
- Full ink cartridge included. Yield up to 200/200 pages (black/colour)*
- Compatible with Mobile Connect app
- 2 year carry-in service (plus 3 months extra upon when registration at www.brother.co.th within 15 days after purchasing not including parts)
Information
Overview
Connectivity
Enjoy greater convenience with Brother's improved range of wireless and wired LAN monochrome laser machines. The built-in wireless* and ethernet* interface enables multiple users to share the printer for better use of resource.
Plus, the Brother iPrint&Scan app lets you easily print a variety of file types from, or scan documents directly to your iOS or Android devices.
Reliability
Enjoy a smooth printing experience with Brother's Hassle-Free Printing Technology. Designed in Japan for reliable performance; downtime and maintenance are kept to an absolute minimum.
Efficiency
Productivity is kept at its maximum with high print speed of up to 20 pages per minute (ppm), and the Automatic Document Feeder (ADF) lets you copy, scan and fax up to 10 pages at one go. Equipped with a 2-in-1 ID Copy feature, you can copy both sides of an ID card onto one page at the touch of a button.
Affordability
The Brother series is specially designed for more savings by allowing you to replace the toner cartridges and drum units separately. What's more, Brother's affordable machine and genuine toner cartridge can deliver up to 1,000* pages of high quality prints.
*In accordance with ISO/IEC19752w
Specifications
Basic Specs
Functions
Print, Scan, Copy, Fax
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
385 mm × 340 mm × 283 mm
Weight
8.2 kg
Print Speed
Up to 20ppm
Paper Type
Plain Paper, Recycled Paper
Paper Size
A4, Letter, Legal, Folio, A5, A5(Long Edge), B5, Executive
Width: 148 to 216 mm | Length: 148 to 355.6 mm
Maximum Paper Capacity
Up to 150 sheets of 80 g/m2 Plain paper
Warranty
2 year carry-in service plus 3 months extra upon registration at www.brother.co.th within 15 days after purchasing
Resolution
Up to 2400 x 600 dpi (HQ1200 technology)
Paper handling
Tray #1 - Paper Type
Plain Paper, Recycled Paper
Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 10 pages
Paper Output
Up to 50 sheets of 80 g/m2 Plain Paper (face-down delivery to the face-down output paper tray)
Copy
Multiple Copies
Stacks or Sorts up to 99 pages
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Up to 600 × 600 dpi
Scan
Colour / Monochrome
Yes/Yes
Resolution - Interpolated
Up to 19,200 × 19,200 dpi
Resolution - Scanner Glass
Up to 600 × 1200 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 600 × 600 dpi (optical) (from ADF)
Fax
Modem Speed
14,400 bps (with Automatic Fallback)
Memory Transmission
Up to 400 pages
Out of Paper Reception
Up to 400 pages
Connectivity
Connectivity
Hi-SpeedUSB2.0, Wireless LAN IEEE 802.11b/g/n (Infrastructure/Ad-hoc Mode)
Network
Wireless Network Security
WEP 64/128, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Memory Capacity
32 MB
Operation
Power Source
220 - 240 V AC 50/60 Hz
Power Consumption - Ready
Approx. 50 W at 25 ° C
Power Consumption - Power Off
Approx. 0.3 W
Noise Level
L pa m = 52 dB (A)
Supported Operating Systems
Supported OS
Window 8.1/8/7, Windows Vista, Windows XP Home/Professional/Professional x64, Windows Server 2012/2012 R2/2008 R2/2008/2003 x64 Edition/2003
Mac OS X v10.9.x, 10.8.x, 10.7.5 (Download only)
