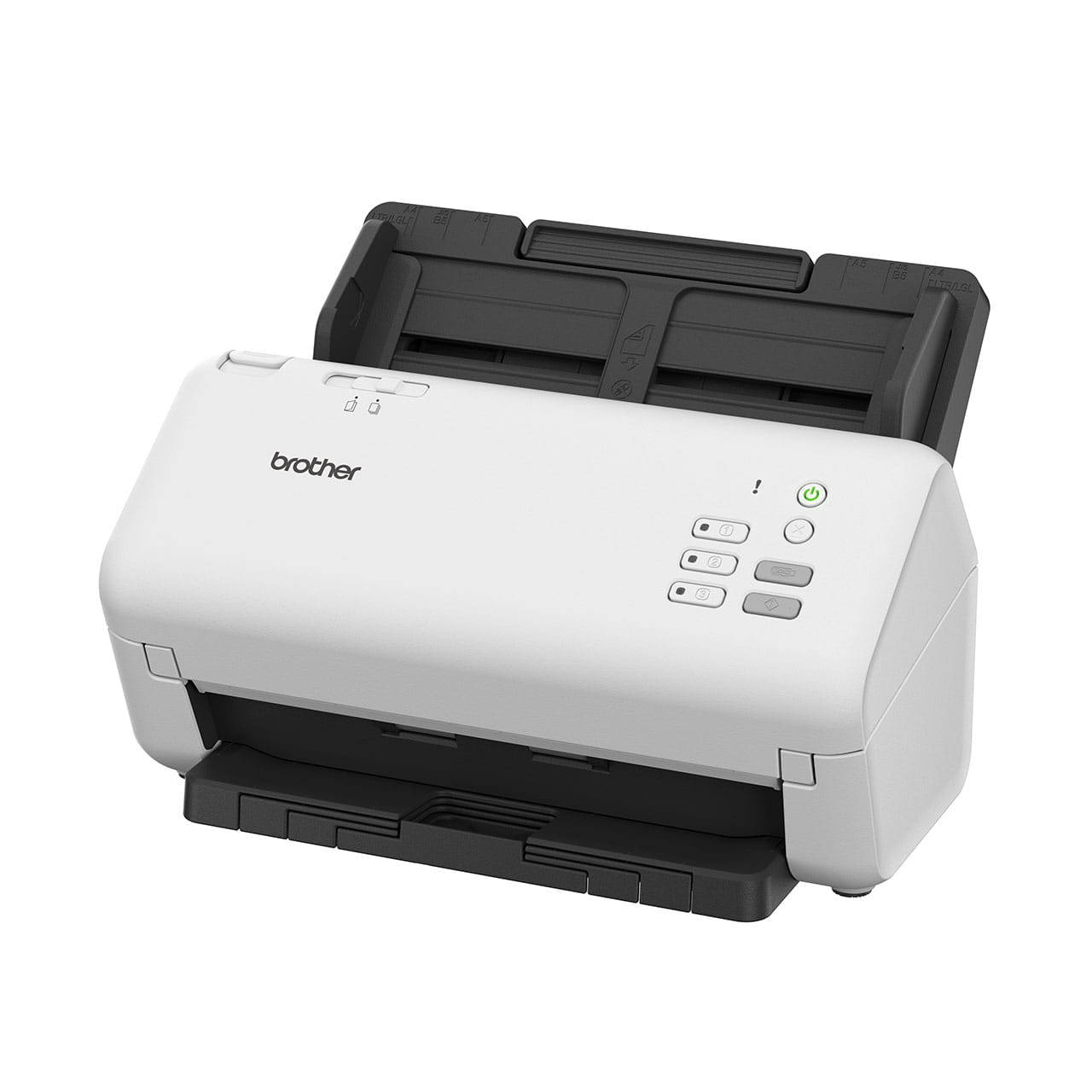

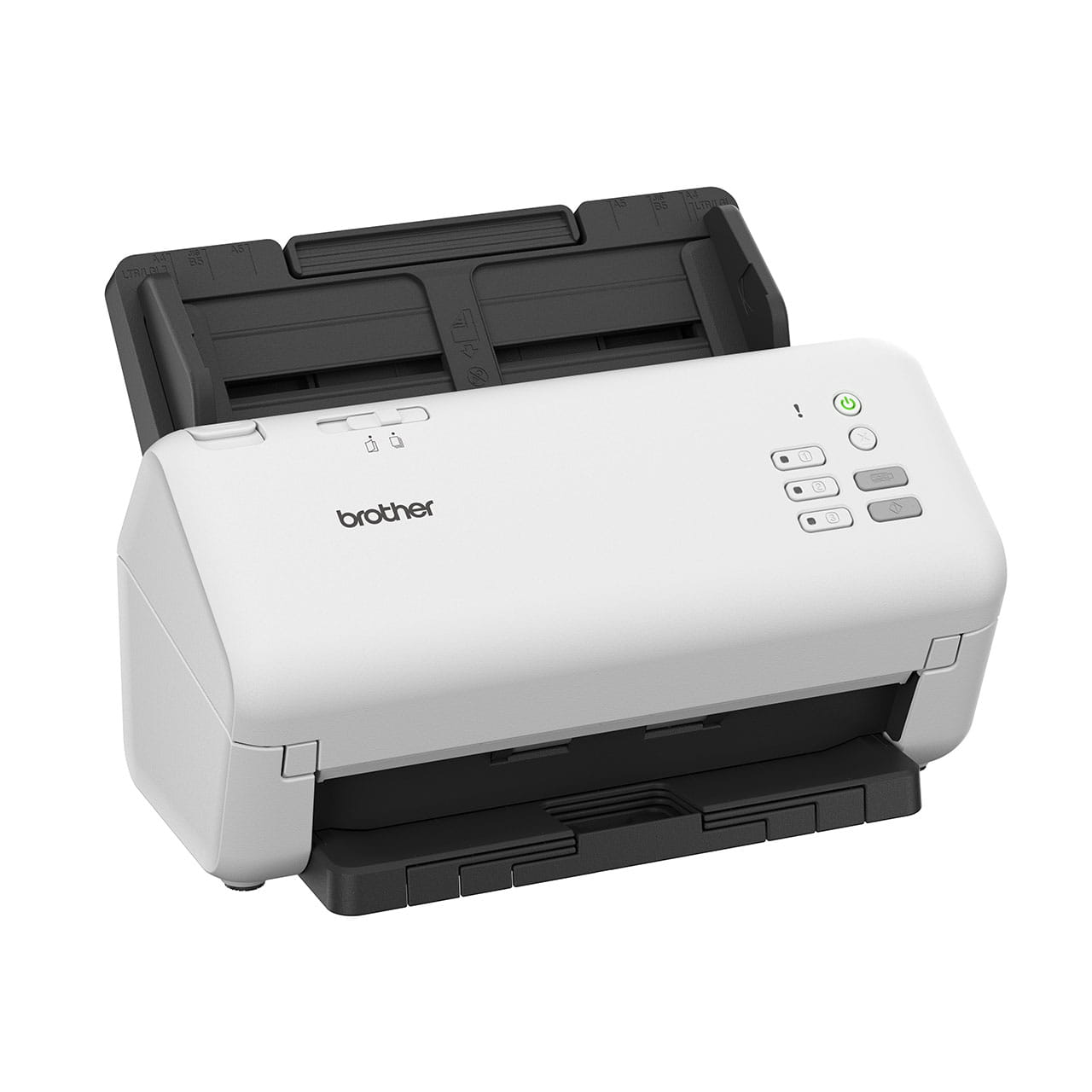

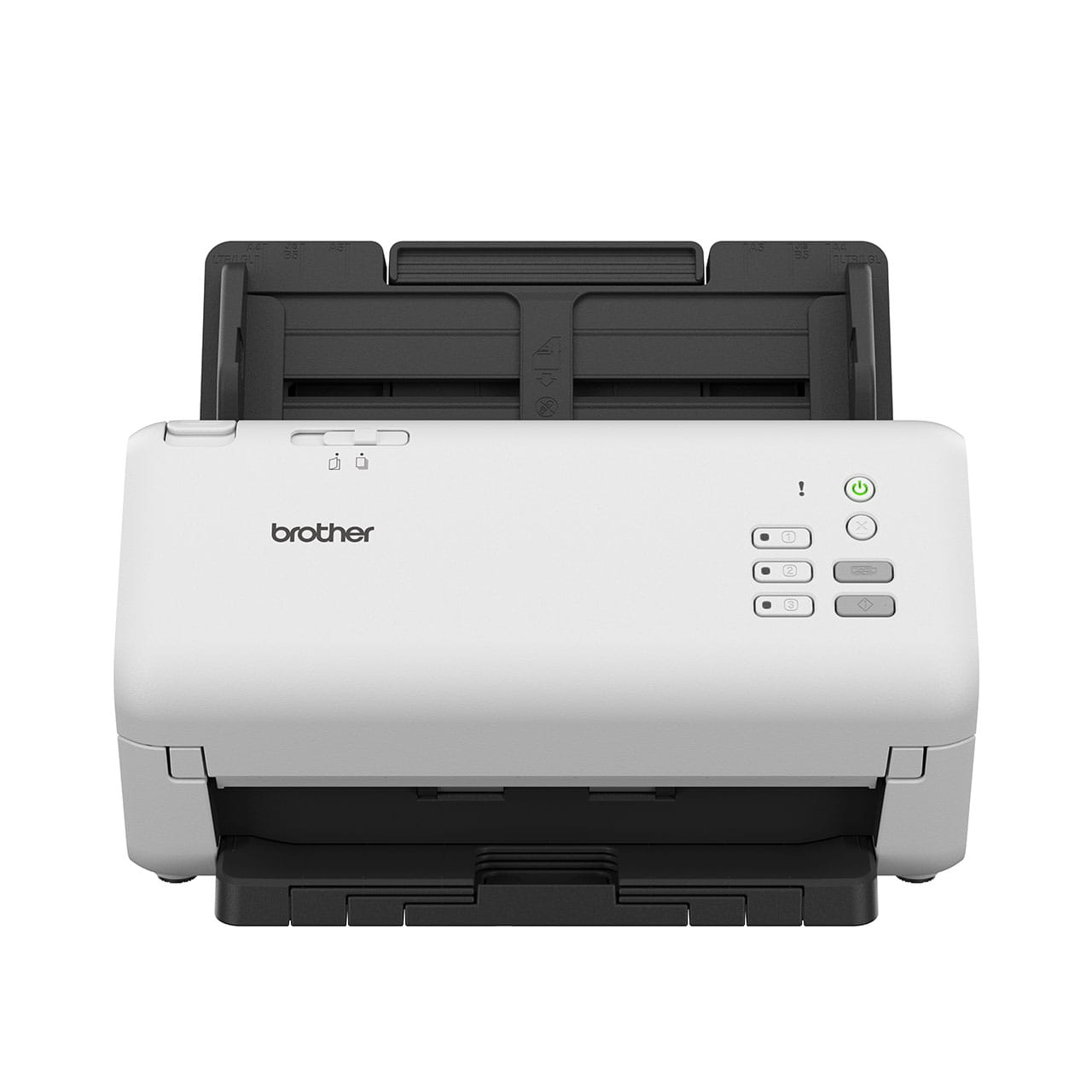

High-speed network desktop scanner
- 2-sided scan up to 80 images per minute
- 80 sheet Automatic Document Feeder (ADF)
- Mobile Connect App
- Driver compatibility with TWAIN (Win, macOS), WIA, ISIS, Linux SAN
- Advanced image processing and batch scan
- Ultrasonic Multifeed Sensor, Separation Switch
ข้อมูล
ภาพรวม
Capture. Optimise. Collaborate
Expertly designed with businesses in mind, our scanners help to streamline business processes whilst providing an effortless, user-friendly experience. They enable you to intelligently capture and optimise the contents of your documents and easily collaborate with colleagues.
High-speed network desktop scanner ADS-4300N
High-volume scanning
Built for demanding, high-volume workplaces, Brother’s range of Kofax certified desktop scanners allow busy departments to batch scan and archive a larger number and wider variety of documents quickly and easily. From batch scanning large volumes of very thick or thin paper documents to multi-page, mixed batch media, through to embossed plastic cards, all can be scanned continually with the help of a Separation Switch.
Automatically route documents with barcodes
Reduce the labour-intensive task of scanning several documents, saving and then renaming files. Barcode Utility enables documents that have a barcode to be scanned and saved to the required location, automating the separation of a batch of documents and routing each individual file to the designated folder on your network.
Easy Maintenance
Reduced maintenance costs and downtime due to the high-volume scanning capacity and reliable roller mechanisms. Easy access to the paper path allows you to clear any paper jams and the CIS Cleaning Alarm reminds you to clean the unit when required, without having to call a service centre.
ข้อมูลจำเพาะ
ข้อมูลพื้นฐาน
ความเร็วในการสแกน
40 ppm
ขนาดเอกสาร กระดาษหลายแผ่น ความกว้าง
50.8 mm to 215.9 mm
ขนาดเอกสาร กระดาษหลายแผ่น ความยาว
50.8 mm to 355.6 mm
ขนาดเอกสาร กระดาษแผ่นเดียว ความกว้าง
50.8 mm to 215.9 mm
สี / ขาวดำ
Yes/Yes
สแกน 2 ด้าน (ดูแพล็กซ์)
Yes
ความลึกสี อินพุต
48-bit colour processing
ความลึกสี เอาต์พุต
24-bit colour processing
ความละเอียด ออปติคัล
Up to 600 dpi × 600 dpi
ความละเอียด การสอดแทรก
Up to 1,200 dpi × 1,200 dpi
ความกว้างของการสแกนเอกสาร
Up to 215.9 mm
ขนาดสินค้า (กว้าง x ลึก x สูง)
299.5 mm × 190.5 mm × 215.9 mm
น้ำหนัก
2.64 kg
ADF (โครงส่งเอกสารอัตโนมัติ)
Up to 80 pages (Paper: 80 g/m²)
ความจุของหน่วยความจำ
512 MB
การดำเนินการ
แหล่งจ่ายไฟ
AC: 100-240V, 50/60 Hz
การใช้พลังงาน การสแกน
Approx. 24W
การบริโภคพลังงาน - พร้อมใช้งาน
Approx. 6.8W
การใช้พลังงาน การประหยัดพลังงาน / โหมดพักสนิท
Approx. 1.7W
การบริโภคพลังงาน - ปิดเครื่อง
Approx. 0.1W
อุณหภูมิ การทำงาน
5°C to 35°C
ความชื้น การทำงาน
20% to 80%
ความชื้น การเก็บรักษา
10% to 90%
การปฏิบัติตาม
เป็นไปตามมาตรฐาน TWAIN WINDOWS®
Windows Server 2012 / Windows Server 2012 R2 / Windows Server 2016 / Windows Server 2019
เป็นไปตามมาตรฐาน TWAIN MAC OS
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
เป็นไปตามมาตรฐาน WIA WINDOWS®
Windows 7 (SP1) / Windows 8.1 / Windows 10
เป็นไปตามมาตรฐาน ICA ระบบปฏิบัติการ MAC
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
เป็นไปตามมาตรฐาน ISISTM WINDOWS®
Windows 7 (SP1) / Windows 8.1 / Windows 10
